360 Degree Car Rearview Camera System
Quick Details:
Type: 360 Degree Car Visual Security Parking System
Voltage: DC 12V
Car make: for all brand cars, buses, trunks
Resolution: 520TVL
Effective pixel: 668*576
MOQ: 1 set
Place of origin: Guangdong China.
Description:

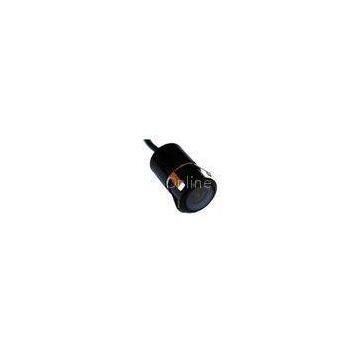

o Image sensor: CMOS high-definition sensor PC1089
o Waterproof and weather-resistant housing for outdoor use
o Good night vision performance, small noise and no color aberration
o 180° wide viewing angle
o Picture elements: NTSC/PAL
o Effective pixels: 668*576
o Horizontal resolution: 520TVL
o Video output: 1.0Vp-p 75Ω
o Low illumination: 0.5 lux
o Gain control: automatic
o White balance: automatic
o Backlight compensation: automatic
o Working temperature: -30 to 70°C
o Storage temperature: -40 to 85°C
o Waterproof level: IP68
Product Details
Item |
usage |
Bird-view CPU Box |
system core part |
Front camera |
180°wide angle HD night vision Camera at car front |
Right camera |
180°wide angle HD night vision Camera at car right side |
Rear camera |
180°wide angle HD night vision Camera at car rear |
Left camera |
180°wide angle HD night vision Camera at car left side |
Camera extension line |
camera’s power supply changeover and extension connection |
Controlling wire |
wires to reverse line, left/right signal line, infrared line… |
Applications:
This unit is good for all brand cars, a helpful tool for drivers to park cars.
Specifications:
Key Specifications/Special Features:
System:o Left/right rear-view mirror cameras specially design for Toyota Crown
o Capture the image of 4 different views with the use of 4 wide angle cameras (fish-eye angle) installed around the car, after image processing and stitching and synthesizes to a panoramic view image with 360° from top-down (bird view) surrounding the car, and the panoramic view timely transferred to the display screen of the control center
o Equipped with DVR to record image from 4 cHelameras
Clear 360° bird view panoramic display around automobilesSuper wide horizontal viewing angle (180°)Auto image mosaicVideo output to DVD or monitor, image show in screen with remote control can be:o Front view + bird view
o Rear view + bird view
o Left/right side view + bird view
Video output: CVBS/NTSCResolution of video output: 800x480DVR memory: micro SD card up to 32GB or mobile hard disk via USBUSB: USB2.0 for connection to mobile hard disk, for DVR recording, for software upgrading, and for view DVR recordingOn screen set up menuWorking voltage: 8 to 30V DCWorking current: <500mA at DC 12VWorking temperature: -30 to 70°CStorage temperature: -40 to 85°CDVR features:o Your on-site witness, automatically record when ignition on
o Shutdown time-lapse delay recording
o Synchronous video replay and recording
o Manually open/close recording quickly
o Replay video at any time
o Date/time shown on video
o Loop recording
Primary Competitive Advantages:
Brand-name PartsCountry of OriginDistributorships OfferedExperienced StaffForm AGreen ProductGuarantee/WarrantyPackagingPriceProduct FeaturesProduct PerformancePrompt DeliveryQuality ApprovalsReputationServiceSmall Orders Accepted
Tag Words:
360 degree bird view parking system, around view monitor parking guidance system, AVM parking system, 360 degree bird view parking system with DVR function…..
