Home > Products > Angle Seat Valve > 2000 Threaded Port 2/2 Way Angle Seat Valve Integrated PA Pneumatic actuator

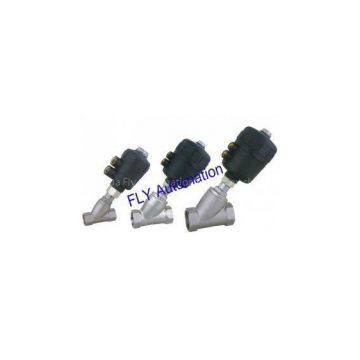

2000 Threaded Port 2/2 Way Angle Seat Valve Integrated PA Pneumatic actuator
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | OEM | Place of Origin: | China | Model Number: | 142613 ,178606,178682,178678,178664,178674,186488,178697,178697,178693,187840,001140,001601,001373 |
Product Description
Certification:CE,ISO9001
2000 Threaded Port 2/2 Way Angle Seat Valve Integrated PA Pneumatic actuator is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also.) The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life. A full range of accessory items are available including limit switches, solenoid valves, manual override devices, stroke limiters
Features & Benefits Integrated pneumatic actuator NAMUR solenoid mounting pad Compact assembly Visual indicator High Cycle-Life Actuator rotates 360° Complete line of accessories Materials Body, Plug, & Stem: Zeus - Bronze Ares - 304, 316SS Seats & Seals: PTFE Valve Configurations Spring Ret. N.C. Bi-directional Flow Spring Ret. N.C. Flow from Above Plug Spring Ret. N.O. Flow from Below Plug Double Acting Bi-directional Flow Manual Handle Bi-directional Flow |
End Connections
BSP, NPT Threaded (3/8\" to 2 1/2\")
Tri-Clamp (1/2\" to 2 1/2\")
Butt Weld (call)
150 lb. ANSI Flanged (call)
Specifications (Viton Seals) Temperature Range: -14 to 358°F Max. Pressure: 150 PSIG Typical Applications Steam Applications Air Drying Equipment Sterilizers Autoclaves Process Control Applications Laundry Equipment Textile Dyeing & Drying Bottling & Dispensing Equipment Ink & Paint Dispensing Industrial Compressors |
Type | Port Size | DN (mm) | Actuator Size(φ) | PA Actuator | PPS Actuator |
Normally Closed Type (NC) | 3/8\" | 13 | 40 | 142613 | 178612 |
1/2\" | 13 | 40 | 178606 | 178605 | |
1/2\" | 13 | 50 | 178682 | 178681 | |
3/4\" | 20 | 50 | 178678 | 178677 | |
3/4\" | 20 | 63 | 178664 | 178663 | |
1\" | 25 | 63 | 178674 | 178667 | |
1\" | 25 | 80 | 186488 | 187844 | |
1 1/4\" | 32 | 80 | 178697 | 178696 | |
1 1/2\" | 40 | 80 | 178693 | 178692 | |
1 1/2\" | 40 | 125 | 187840 | – | |
2\" | 50 | 100 | 001140 | 001239 | |
2\" | 50 | 125 | 001601 | – | |
2 1/2\" | 65 | 125 | 001373 | 001703 | |
Normally Open Type (NO) | 3/8\" | 13 | 40 | 142616 | 178609 |
1/2\" | 13 | 40 | 178603 | 178604 | |
1/3\" | 13 | 50 | 178689 | 178688 | |
3/4\" | 20 | 50 | 178686 | 178685 | |
1\" | 25 | 50 | 178848 | 178847 | |
1 1/4\" | 32 | 63 | 178852 | 178851 | |
1 1/2\" | 40 | 63 | 1788 |
