1 Way Concealed Wall Mounted Thermostatic Shower Set With 8 ' Raining Shower Head
wall mounted 1 way thermostatic shower mixer with raining shower head set
Quick Detail:

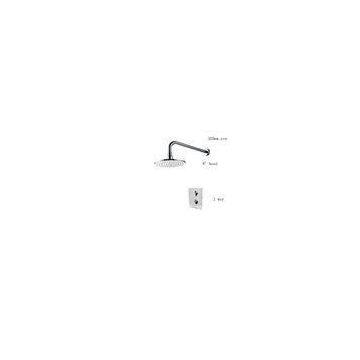

Wall mounted built in 1 way thermostatic shower mixer with raining shower head set ,the valve with round handle and decorative plate, set with round 8’ shower head and round shower arm .
Thermostatic design, no need to adjust temperature hardly each time,never worry about scalding or drop in temperature again.
perfect addition to any bathroom.
Description:
This thermostatic shower set ,full brass made ,chrome finish ,high flow design ,especially suitable in low water pressure but still keep normal outlet flow rate .wall concealed mounted ,set of 1 thermostatic mixer ,1 overhead raining shower head and 1 wall extend arm .
Specifications:
Ref thermostatic shower mixer valve :
|
Weight |
4kg per piece |
|
Overall Dimensions |
(H x W) 230mmx180mm |
|
Connection |
3/4\'Inlets and Outlets Compatible with standard plumbing connections |
|
Material |
solid brass ,from 62# brass pressure casting made,high density,It’s Green, Clean and Hygiene Products |
|
Cartridge |
Ceramic Disc Technology ,48mm dia cartridge . |
|
work pressure |
0.05Mpa-1Mpa,ideal 0.1-0.5Mpa,installation reducing valve while exceeding ideal pressure . |
|
Work temperature |
Pre-set maximum temperature 85C,ideal hot water supply temperature 60-70C ,cold water 5℃-29℃ |
|
Preset temperature |
Thermostatic cartridge with preset temperature stop 38°C and Separate controls for temperature outlet range 20-50C |
|
Safe device |
Automatic anti scald,if cold water supply fail ,hot flow rate will be reduced to virtually shut off |
|
Temperature adjust |
Temperature control can be locked in position when setting up the required temperature , you will be able to reach the demand temperature after outlet within 5S,and the outlet fluctuate within +_2C |
|
note |
using two functions simultaneously may reduce the water flow to both outlets. |
Ref shower head
|
Diameter |
200mm ,8 inch |
|
Material |
Brass 59# |
|
Surface |
High quality chrome finish |
|
Connection |
1/2’ thread inlet female connection to shower arm |
|
Swivel |
Swivel ball joint allows a smooth angle adjustment |
|
Flow rate |
gpm: 2.5 gpm (9.5 l/min) max. |
|
Outlet |
Easy cleaning silicon nozzles ,keep water thin and dense |
|
Application |
Any wall or ceiling shower arm |
Ref shower arm
|
Size |
330mm length diameter 25mm |
|
Material |
brass |
|
Surface |
High quality chrome finish |
|
Connection |
1/2’ male Inlet and outlet connection |
|
Decorative cover |
With a cover for hide the install hole |
|
Application |
Any overhead shower head |
Application:
Suitable for plumbing stystem of combine boilers ,gravity fed ,unvented mains pressure ,shower pumps.
Advantage :
1. Thermostatic control means no more fluctuations between cold and hot water
2. higher flow rates design , can work at low or high water pressure but always keep normal outlet flow rate .
3. heavy design ,4kg per piece ,strong and safe ,never corrode or rust
4. the plates are adjustable by 35mm for easier install ,suitable for any thickness of tile or grout
5. Leak Resistance: Passed the leak tests repeatedly to avoid the leak, even at high pressure up to 2Mpa
