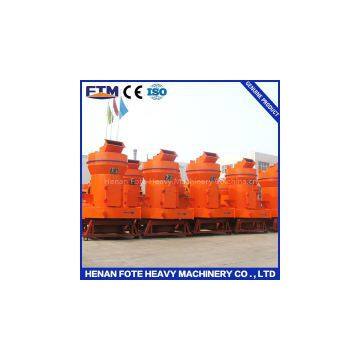

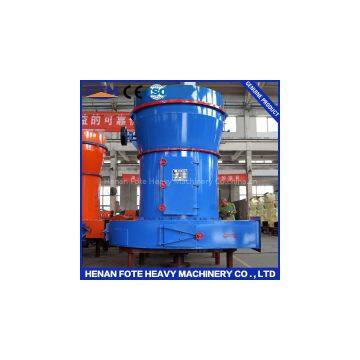

Cement Clinker Grinding Mill

Cement clinker is semi-finished products, which takes limestone, iron material and clay as main raw materials, mixed by appropriate ratio, then burn to melting stage and then cooled down. Cement grinding is the end procedure of the cement manufacturing process, and is also the most power consumption process. The main function is to grind cement clinker to appropriate granularity, forming certain grain size, thus to increase its hydration area and accelerate the hydration speed and finally to satisfy the requirement of cement paste setting and hardening.

Cement clinker grinding mill is the new generation of coarse grinding mill independently developed by our company. It is used in the production of 0-3mm powder. It follows part of the working principles of crushing machine to make up for the size range deficiency of traditional mills, which has become the core equipment for the production of coarse powder particles.

Cement clinker grinding mill is widely used in metallurgy, mining, chemical industry, cement, coal gangue, building materials, sand industry, refractory material industry, glass and ceramic industries. It is often used for grinding limestone, calcite, dolomite, barite, talc, calcium carbonate, gypsum, bentonite, etc.

The Components of Cement Grinding Production Line:

Cement clinker grinding production line mainly consists of the host, the powder selecting machine, wind machine, jaw crusher, bucket elevator, electromagnetic vibration feeder, storage bin, cloth bag dust remover, piping device, cyclone powder collector, electric control cabinet, motor and other components.

The Advantages of Cement Clinker Grinding Mill:

1.Strong Production Capacity and High Crushing Ratio.

It has performance advantages of crushing machine. When compared with the traditional grinding mill, it has higher yield and greater crushing ratio.

2.Stable Performance and Uniform Particle Size.

The optimized design cavity and unique working principle have ensured the superior performance of grinding machine. The machine is equipped with a sieve, so after grinding, the qualified materials can pass through the grate to be discharged; the unqualified will stay in the crushing cavity to ensure the uniform particle size of product.

3.Low Investment and Convenient Management.

The mill has high cost performance ratio. When compared with the traditional mill, it has the advantages of simple process, less land occupation, lower costs and more convenient management.

4.Simple Structure and Convenient Repair.

The cement grinding mill is mainly composed of a casing, rotor, bearing the hammer and bar and other parts. The main case is made of high manganese steel liner, which has abrasion resistant property and long service life. It is equipped with hydraulic adjustment device to save the stop time.

/
