Outdoor Event LED Screen SMD PH8mm GM6 Series 6000 Nits Normal Brightness
Product Details:
Special design aluminum module, special design aluminum cabinet, patented design, unique in the world, new generation LED display.
Really outdoor SMD LED display, 10 years R&D, over 30 patents, high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
Quick Detail:
1. Available models: PH10mm, PH8mm, PH6mm, PH5mm…
2. high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
3. Light weight and easy to install
4. Perfect uniformity and no mosaic.
5. Lifespan is up to 100,000 hours.
6. Hanging structure design with gapless connection, quickly installation and dismantling
Description:
1. Light Weight
40KG for one square meter.
2. Die Casting Materials
Aluminum alloy
3. Slim Design
one cabinet size is 1024mm x 768mm or any size you want on condition of integral multiple module size.
4. Easy Installation
An average worker can install more than 70 cabinets within one hour W/O tool.
Applications:

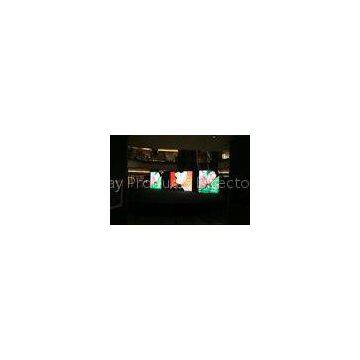

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Specifications:
|
Model No. |
GM6-RE-8S-PH8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256*128mm |
|
Module Resolution(pixels) |
16*8 |
|
Cabinet Size |
768mm×768mm |
|
Panel Resolution(pixels) |
128×96 |
|
Pixel Configuration(RGB) |
SMD 3 in 1 |
|
Pixel Density(pixels/㎡) |
15625 |
|
Brightness(cd/㎡) |
6000 |
|
Best Viewing Distance(m) |
6-100 |
|
Average Power Consumption(W/㎡) |
600 |
|
Waterproof Level |
IP65 |
|
Vavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3129 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Tempreture |
–40~80°C |
|
Video Frame Rate(Hz) |
≥ 60HZ |
|
Display Refresh Rate(Hz) |
≥ 2000HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/16 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wir
