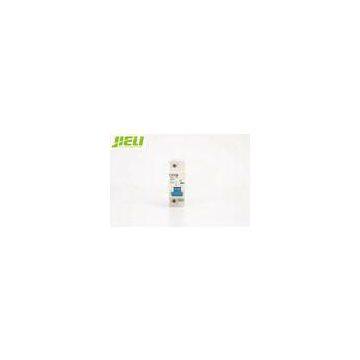

NC Small Mini Circuit Breakers 80A / 100A / 125A , Overload Circuit Breaker

Name: NC Small Mini Circuit Breakers 80A / 100A / 125A , Overload Circuit Breaker
Brand: JIELI
SKU: 149555846
Availability: InStock

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

JIELI

Place of Origin:

China

Model Number:

JL-NC100H

China Online UPS Online Market

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name JIELI

Place of Origin China

Model Number JL-NC100H

Delivery Time:Within 20 days
Certification:CE/ISO9001/IEC60898-1

NC Small Mini Circuit Breakers 80A / 100A / 125A , Overload Circuit Breaker

Quick detail:

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	JIELI	Model Number:	JL-NC100H
Type:	Mini	Poles Number:	2	Products define::	Mini circuit breaker
Shell material::	flame-retardant thermoplastic	Mounting mode::	DIN rail 35mm	Function::	for overload and short circuit protection; isolation
Rated voltage::	230/400V	Rated current::	6,10,16,20,25,32, 40,50,63A	Electrical life::	4000 times
Thermo-magnetic release characteristic::	B,C,D	Number of poles::	2 pole	Mechanical life::	10000 times

Description:

1.JL-NC100H mini circuit breaker shell: it is made of fire-resisting and reinforced plastic

2.JL-NC100H mini circuit breakerstatic contact: it is made up of 85% silver point and cooper;

3.JL-NC100H mini circuit breaker moving contact: it is made up of 85% silver point and red cooper;

4 JL-NC100H mini circuit breaker magnetic release: it is made up of sleeve coil, plastic sleeving and core;

5 JL-NC100H mini circuit breaker thermal release: it is made up of bimetallic element and iron bracket;

6 JL-NC100H mini circuit breaker terminal lug: it is made of iron;

7 JL-NC100H mini circuit breaker arcing chamber with nine pieces;

8 JL-NC100H mini circuit breaker spring: it is made of stainless steel.

Applications:

JL-NC100H Mini circuit breaker is the most widely used in building electrical terminal distribution device of a terminal protection appliances.

JL-NC100H mini circuit breaker is mainly used in Industrial, commercial, high-rise and civil residence.

Specifications:

Electrical features	Rated current In	A	1,3,6,10,16,20,25,32,40,50,63
Poles Rated voltage Ue		1P,2P,3P,4P
V	230/400
Insulation voltage Ui	V	500
Rated frequency		50/60HZ
Rated breaking capacity	A	3000,4500,6000
Rated impulse withstand voltage (1.2/50)Uimp	V	4000
Dielectric test voltage at ind .Fred .for 1min	kV	2
Pollution degree		2
Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life		4000
Mechanical life		10000
Protection degree		IP20
Reference temperature for setting of thermal element	°C	30
Ambient temperature (with daily average≤35°C)	°C	-5….+40
Storage temperature	°C	-25…+70
Installation	Terminal connection type		Cable/Pin-type busbar
Terminal size top /bottom for cable
