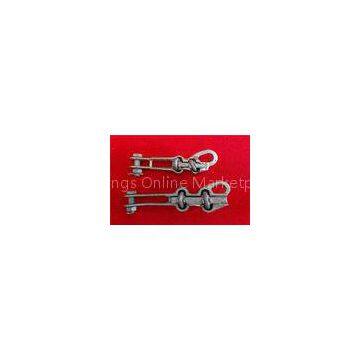

Straight Line Type Strain Clamp , Smooth High Strength Aluminium Alloy Clamp

Straight Line Type Strain Clamp , Smooth High Strength Aluminium Alloy Clamp

Quick Detail:

* High strength

* For fixed wire to withstand wire tension, and wires are strung to tension or tower on hardware.

* Hardware is Hot-dip galvanized

* The clamp body and keepers are aluminium alloy or malleable iron. ,the closed-pin is stainless steel work,the other parts are steel

Description:

High strength aluminum clamp for dead ending distribution and light  transmission construction with all aluminum, ACSRor aluminum alloy conductor.

Straing line strain clamps   have high holding power and large range taking ability. Straight-line design,with hot stick lifting-eye, pulling-eye, and captured, angled U bolts,facilitatesinstallationandmaintenance, especially on hot-line work.Snub-pocket V-shaped, range-taking conductor groove and galvanized steel U-bolts provide high holding strength.

Applications:

Strain clamp is used in the corner, connection, and the terminal connection. Screw the aluminum clad steel wire with a strong tension strength, no stress concentration, the optical fiber cable protection and auxiliary damping effect. A complete set of cable resistance to gold include: pre-paid hinge, form a complete set of hardware connection. Clip grip strength no less than 95% rated tensile strength of the fiber optic cable installation is convenient, fast, reduce the construction cost. Applicable to span 100 meters or less, the line Angle < 25 ° ADSS cable lines.

Strain clamp are used to fix the conductor or ground wire on the perch tension insulator string, the anchor role, also used for the arrows of fixed anchor tower.

Specifications:

 For distribution and light transmission construction. The angle beam pressure pad effectively converts torque to maximum pressure and spreads this force over the total contact area. The compressive forces are combined with the modified parabolic groove of the body to provide maximum conductor encirclement and increased holding ability. The large pulling eye makes it convenient to connect and disconnect the hook. The pressure pad is easily lifted and swung clear of the cable groove permitting convenient top loading of the conductor without disassembly.

Competitive Advantage:

* The body is made of high-strength aluminium alloy

* Smooth surface long servile life

* Easy installation

* No waste electric energy
