Home > Products > Hydraulic Cutting Machine > 80T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/die cutting machine scrapbooking

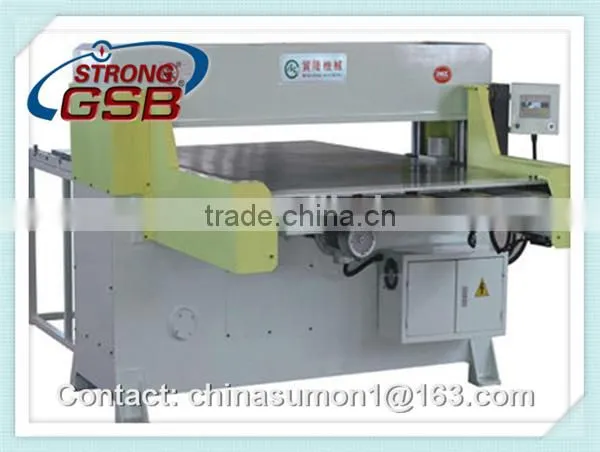

80T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/die cutting machine scrapbooking
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | GSB | Model Number: | XCLP3-80 |
After-sales Service Provided: | No overseas service provided |
Product Description
80T Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/Die Cutting Machine/Punching Machine
XCLP3-80 Auto-balance Precise Hydraulic Four-column Plane Cutting Machine
Usage and characteristics:
1. The machine is widely applicable for cutting of nonmetal materials in various
industries by cutting die.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which
can guarantee that the cutting depth at every cutting position is same.
3. With special setting mechanism, and equipped with die cutter and cutting depth
setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die
cutter, which can make that there is no size error between the uppermost layer
and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision
and prolongs service life of machine.
Main technical parameters:
Model | XCLP3-80 |
Maximum cutting force | 80Tons |
Distance between upper pressing board and worktable | 50-200mm |
Cutting area | 1600×900mm / 1400×900mm |
Motor power | 7.5KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Machine weight (approximate) | 6500Kg / 6000Kg |
REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER,FOR EXAMPLE,THE CUTTING FORCE,CUTTING AREA,FEEDING DEVICE,SPECIAL STROKE ETC.
