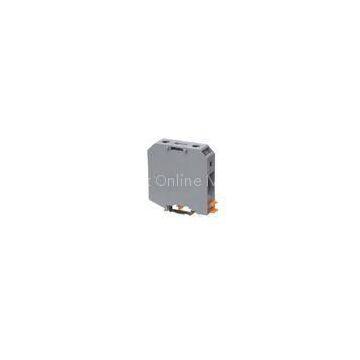

800V 101A 750V 88A UKH50 Screw Terminal Blocks Side Entry Size 83.5mm
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
4 Conductor Ground 600V 20A Spring Terminal Block With CE , CB , TUV
-
PCB Female 300V 16A 15A MCS Connector With Snap-in Mounting Clamp
-
800V 101A UK16N Ground Terminal Block Strip Length 16mm
-
750V 73A Insulated UK10N Ground Screw Clamp Terminal Block Green Yellow
-
WAGO 24 - 16 AWG 2 * 2 Conductor Through Spring Terminal Block Side - Marked
-
800V 41A 24 - 10 AWG UK5 Grounding Screw Clamp Terminal Block
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 50 PCS |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
800V 101A 750V 88A UKH50 Screw Terminal Blocks Side Entry Size 83.5mm
Quick details
UKH50 Screw Terminal Block
Wire Range 16.0-50.0 mm2/6-1/0AWG
800V 101A 600V 85A 750V 88A.
Size 83.5/20/70.5 mm
UKH50 800V 101A Side Entry Screw Terminal Blocks for SP35 Rail
Order No.:350901(Gray)
Other Color: 350902 (Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer\'s requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
Other Color: 350902 (Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer\'s requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
Specifications:
|
Part Name: |
UKH50 Screw Terminal Block |
|||
|
Wire Range: |
16.0-50.0 mm2/6-1/0AWG |
|||
|
IEC |
UL |
CSA |
EN50019 |
|
|
Rated Voltage: |
800V |
600V |
600V |
750V |
|
Rated Current: |
101A |
85A |
85A |
88A |
|
Size (mm/in): |
83.5/20/70.5 mm |
|||
|
Strip length (mm/in): |
24mm/0.94in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
screw-clipping |
|||
|
Entry Type: |
Side-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
52g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Blue |
|||
|
Packing: |
100PC |
