Help CenterAluminum / Color Steel Eps Sandwich Panel Machine For Wall Panel 6-12m/Min
Related Products
-
Color Steel Continuous Polyurethane Sandwich Panel Making Line With High Press FoamingUS$ 200000$ - 400000$MOQ: 1 Set -
Galvanized Steel Wall Panel Continuous Pu Sandwich Panel Production Line 2-5m/minUS$ 200000$ - 400000$MOQ: 1 Square Meter
-
OR Wall / Ceiling PU Sandwich Panel Machine Production Line With Aluminum Foil FacingUS$ 150000$ - 400000$MOQ: 1 Set
-
35kw Ceiling Polyurethane Sandwich Panel Production Line With Aluminum Foil FacingUS$ 150000$ - 400000$MOQ: 1 Piece
-
Custom Galvanized Steel Wall PU Sandwich Panel Machine 0.3-0.8mm ThicknessUS$ 150000$ - 400000$MOQ: 1 Set
Certification:CE

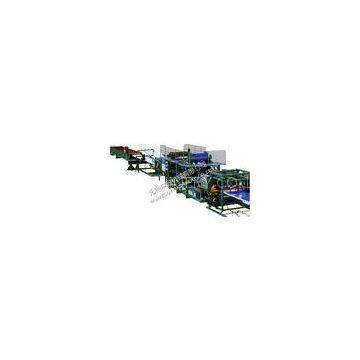

EPS Sandwich Panel Production Line For Ceiling Sandwich Panel, Roofing Sandwich Panel, Wall
Description
Eps roll forming sandwich panel machine will produce panels from Aluminum and steel Metal in thickness of 0.5-0.7mm. The sandwich panel production line includes machinery parts and electrical control system part. Production line supplier will take full technical responsibility for final product quality as defined in the quality criteria Appendix and drawings.
Main Specifications
The components of the machine
1. Uncolier-------------------------------------------------------------------1set
2. Rll forming machine--------------------------------------------------4 sets
3. Embossing machine-----------------------------------1 set(for floor panel)
4. Laminator unit---------------------------------------------------------1set
5. Band saw cutting unit-------------------------------------------------1set
6. out table(not conveying table)---------------------------------------1set
The minimum Setup time between replacing each cassette is 5 minutes by the way of guiding rail
1. cassettes of roll forming machine to produce 5 profile metal sheet : wall panel; inside panel; floor panel; inside panel.
2. Feeding Coil width: according to customers’ drawings
3. Raw material : Aluminum or color steel
4. Working speed:6-12m/min
5. Forming thickness:0.5-0.7mm
6. Forming stations:15 stations for wall panel and corner wall ; 12 stations for floor panel; 6 stations for inner wall
7. Transmission: chains
8 Machine structure: wall panel
9. Tolerance: 1.5mm
10. Electricity power: 5.5 kw for each machine
11. Material of forming rollers: Material Cr12, standard AISI (D2k110 hardness 58-64RC.The roller surface should be with high polish quality to prevent scratches on the metal sheet
12. Shaft Diameter: ￠80mm
13. Shaft Material Shafts : material 4340 steel, not Tempered.
14. The length of the machine: about 35-40mm
15. The weight of the whole machine: about 25ton
16. Machine chassis- The chassis and the Top work surfaces need to be processed at
Thickness of 30-40 millimeters and not adjustable(we suggest using 35mm)
The type pursues board (basis on customer\'s requires to design)
Competitive Advantage:
Economical Simple Standard speed High Quality Reliable Durable Reasonable Price Good after Service 1 Year Warranty More Than 10Years Experience.
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2: Reparis will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: Air ticket, transportation cost, hotel, meals and 60$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
