Help CenterSingle Output DC-DC Converters 100W 5V Quarter Brick Package Size YN100-24S5-PEC
Related Products
-
High Efficiency Isolated dc dc Converter 13W Output 12V MT13-24S12-PEINegotiableMOQ: 1 -
Wide Input Range 36 - 72V DC-DC Converters Output 5 Voltage MT13-48S5-POCNegotiableMOQ: 1 Piece
-
MIL-STD-704 Standard DC-DC Converters With Over Temperature Protection MT13-24S5-POCNegotiableMOQ: 1 Meter
-
Isolation Resistance 100M DC-DC Converters 13 Watt Output 5V MT13-24S5-PEMNegotiableMOQ: 1 Piece
-
MT Series DC-DC Converters 15W Output 24V Isolation Resistance MT15-24S24-POCNegotiableMOQ: 1 Piece

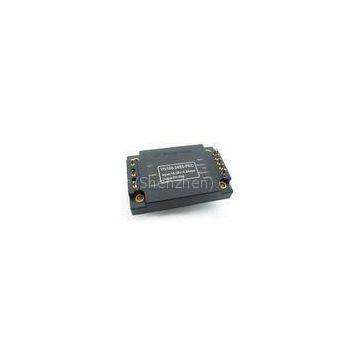

DC-DC Converters 100W Output 5V YN100-24S5-PEC
Key Features
Output power: 100W
Wide input range: 18-36Vdc
High conversion efficiency: Up to 94.5%
Line regulation to ±0.5%
Load regulation to ±0.5%
Fixed operating frequency
Isolation voltage :1500V
Enable (ON/OFF) control
Output over-load protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: ±8% Vout
Package: Encapsulated
Quarter Brick: 2.30×1.48×0.48in
58.5×37.6×12.3mm
Product Overview
These DC-DC converter modules use advanced power
processing, control and packaging technologies to provide
the performance, flexibility, reliability and cost effectiveness
of a mature power component. High frequency Active Clamp
switching provides high power density with low noise and
high efficiency.
Product’s Introduction
The YN series is an independently regulated single output converter that uses the industry standard quarter brick
package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous
rectification and an innovative construction design to minimize heat dissipation and allow extremely high power
densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight,height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.
1. Electric Characteristics
Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,
unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate.
1.1 Absolute Maximum Ratings
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | 45 | Vdc | Continuous, non-operating | ||
| 40 | Vdc | Continuous, operating | |||
| 45 | Vdc | Operating transient protection,<100mS | |||
| Isolation Voltage | 2000 | Vdc | Input to Output | ||
| Operating Temperature | -55 | 100 | ℃ | ||
| Storage Temperature | -65 | 125 | ℃ | ||
| Enable to -Vin Voltage | -0.5 | 10 | Vdc |
1.2 Input Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage Range | 18 | 24 | 36 | Vdc | Continuous |
| Under-Voltage Lockout | 17.5 | 17.9 | Vdc | Turn-on Threshold | |
| 15.8 | 16.5 | Vdc | Turn-off Threshold | ||
| Maximum Input Current | 6.2 | A | Full Load;18Vdc Input | ||
| Efficiency | 93.5 | % | Figures1-4 | ||
| Dissipation | 2.7 | 7 | W | No Load | |
| Disabled Input Current | 5 | mA | Enable pin low | ||
|
Recommend External Input Capacitance |
100 | μF | Typical ESR 0.1-0.2Ω |
1.3 Output Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Output Voltage Set point | 4.95 | 5.00 | 5.05 | Vdc | Nominal input; No load;25℃ |
| Output Voltage Range | 4.90 | 5.00 | 5.10 | Vdc | |
| Output Current Range | 0 | 20 | A | Subject to thermal derating; Figures 5-8 | |
| Line Regulation | ±0.02 | ±0.5 | % | Low line to high line; full load | |
| Load Regulation |
