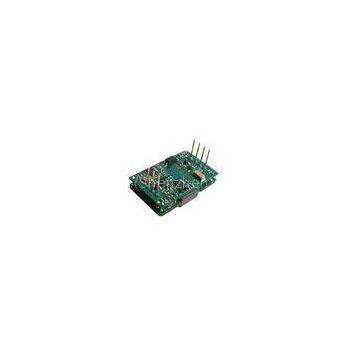

Wide Input Range 36 - 72V DC-DC Converters Output 5 Voltage MT13-48S5-POC

Wide Input Range 36 - 72V DC-DC Converters Output 5 Voltage MT13-48S5-POC thumbnail-1
Wide Input Range 36 - 72V DC-DC Converters Output 5 Voltage MT13-48S5-POC photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Enargy
Place of Origin:
China
Model Number:
MT13-48S5-POC
Contact Supplier Request Quote Chat Now
Enargy Power (Shenzhen) Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Enargy
Place of Origin China
Model Number MT13-48S5-POC
Delivery Time:1-8 Weeks

DC-DC Converters 13W Output 5V MT13-48S5-POC

Key Features

Output power: 13W

Wide input range:36-72Vdc

High conversion efficiency: 91%

Line regulation to ±0.5%

Load regulation to ±1.0%

Isolation voltage :1,500V

Enable (ON/OFF) control

Output over-current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim -5～+10 % Vout

Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     75 Vdc Continuous, non-operating
    72 Vdc Continuous, operating
    75 Vdc Operating transient protection,<100mS
Isolation voltage     2000 Vdc Input to output
Operating Temperature -40   100 ℃ In view of PCB Temperature
Storage Temperature -55   115 ℃
Enable to Vin- Voltage 0   10 Vdc

1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 36 48 72 Vdc
Under-Voltage Lockout   34 35.5 Vdc Recovery point
31.5 32   Vdc Protect point
Maximum Input Current     0.45 A Input Vin min,Output full load
Efficiency   90   % Rated Input;Rated Load
Dissipation,standby   0.8   W No Load

1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set Point 4.95 5.00 5.05 Vdc Nominal input. No Load
Output Voltage Range 4.90 5.00 5.10 Vdc
Output Current Range 0   2.6 A
Line Regulation   ±0.02 ±0.5 %
Load Regulation   ±0.50 ±1.0 %
Current Limit 2.8 3.3   A Output voltage 95% of nominal
Short Circuit Current 2   5 A
Ripple (RMS)   20   mV Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)   70   mV
Maximum Output Cap     4000 μF

1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current   150   mV 50% to 75% to 50% Iout max; (di/dt=0.1A/μs).
  180   mV 50% to 75% to 50% Iout max; (di/dt=0.5A/μs).
Dynamic recovery time   200   µS
Output rise time   50   mS Starting from vin to vout rise to 90%
Turn-off overshoot
