Home > Electrical & Electronics > Electronic Tube & Transistor > Triode > Isolation Switching DC DC Converter Module Output 5V XD50-24DB5-POC

Isolation Switching DC DC Converter Module Output 5V XD50-24DB5-POC

Name: Isolation Switching DC DC Converter Module Output 5V XD50-24DB5-POC
Brand: Enargy
SKU: 149532416
Availability: InStock

Enargy Power (Shenzhen) Co.,Ltd.

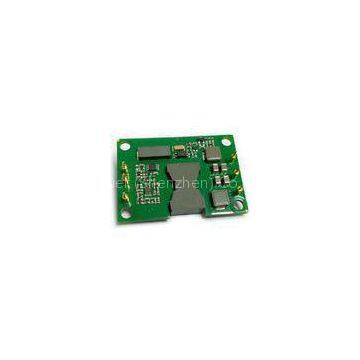

Isolation Switching DC DC Converter Module Output 5V XD50-24DB5-POC thumbnail-1

Isolation Switching DC DC Converter Module Output 5V XD50-24DB5-POC photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Enargy

Place of Origin:

China

Model Number:

XD50-24DB5-POC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Enargy

Place of Origin China

Model Number XD50-24DB5-POC

Delivery Time:1-8 Weeks

DC-DC Converters 50W Output 5V XD50-24DB5-POC

Features:

Wide input range: 18‐36 V

Output power: 50W

High conversion efficiency: 90%

Line regulation to: ±1%

Load regulation to: ±1%

Input under‐voltage lock‐out

Output over‐current protection

Hiccup mode short circuit protection

Output over‐voltage protection

Enable (On/Off) Control

Isolation Voltage(Input to output): 1500Vdc

Product Overview:

These DC‐DC converter modules use advanced power

processing, control and packaging technologies to

provide the performance, flexibility, reliability and cost

effectiveness of a mature power component. High

frequency Active Clamp switching provides high power

density with low noise and high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter	Min	Typ	Max	Units	Notes
Input Voltage			40	Vdc	Continuous, non-operating
		36	Vdc	Continuous, operating
		40	Vdc	Impulse voltage,<100ms,operating
Isolation voltage			2000	Vdc	Input to output
Operating Temperature	-40		100	℃	In view of PCB Temperature
Storage Temperature	-55		115	℃
Enable to -Vin Voltage	-2		10	Vdc

1.2 Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating input voltage range	18	24	36	Vdc
Input Under-Voltage Lockout	17	17.5	18	Vdc	Recovery point
16	16.5	17	Vdc	Protect point
Maximum Input Current			3.4	A	Vin min,output full load
Efficiency		89		%	Rated input;rated load
Dissipation,Standby			5	W	No load

1.3 Output Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output Voltage Set point	+4.95	+5.00	+5.05	Vdc	+Vout	Rated input voltage,Small load
-4.90	-5.00	-5.10	Vdc	-Vout
Output Voltage Range	+4.90	+5.00	+5.10	Vdc	+Vout
