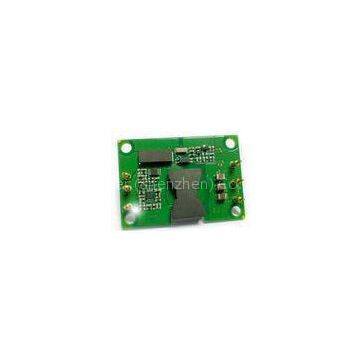

30 Watt 5v isolated dc-dc converter input 18 - 36V XD30-48S5-POC
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
-
Taiwanese KE DIP switch DSWB03LHGET DIP3 plug-in 3-position toggle switch coding switch
-
Three speed toggle switch double row 8P pin sliding switch SS-23D03 G4 (2P3T) fluctuation switch
-
ALPS toggle switch SSAC120200 sliding switch 8-pin three-speed switch with handle power switch
-
12V 20A Auto Car Boat Truck Illuminated Car Aircraft Led Toggle Switch Control On/Off With Safety Aircraft Flip Up Cover Guard
-
Factory Price Manufacturer on off wired toggle switch wiring Medium Toggle Switch12v toggle switch KNS-1
-
Renew Toggle Switch 6A toggle switch On OFF
Product Details
Brand Name: | Enargy | Place of Origin: | China | Model Number: | XD30-48S5-POC |
Product Description
DC-DC Converters 30W Output 5V XD30-48S5-POC
Features:
Wide input range: 18-36 V
Output power: 30W
High conversion efficiency: 91%
Line regulation to: ±1%
Load regulation to: ±1%
Input under-voltage lock-out
Output voltage trim -8~+10 % Vout
Output over-current protection
Hiccup mode short circuit protection
Output over-voltage protection
Enable (On/Off) Control
Isolation Voltage: 1500Vdc
Product Overview
TThese DC-DC converter modules use advanced power processing, control and packaging technologies to provide
the performance, flexibility, reliability and cost effectiveness of a mature power component. High
frequency Active Clamp switching provides high power density with low noise and high efficiency.
1. Electric Characteristics
1.1Absolute Maximum Ratings
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input Voltage |
78 |
Vdc |
Continuous, non-operating |
||
75 |
Vdc |
Continuous, operating |
|||
78 |
Vdc |
Impulse voltage,<100ms,operating |
|||
Isolation voltage |
2000 |
Vdc |
Input to output |
||
Operating Temperature |
-40 |
100 |
℃ |
In view of PCB Temperature |
|
Storage Temperature |
-55 |
105 |
℃ |
||
Enable to -Vin Voltage |
-2 |
10 |
Vdc |
1.2Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input Voltage Range |
36 |
48 |
72 |
Vdc |
|
Input Under-Voltage Lockout |
35.5 |
36 |
Vdc |
Recovery point |
|
32.5 |
33.5 |
Vdc |
Protect point |
||
Maximum Input Current |
1.1 |
A |
Vin min,output full load |
||
Efficiency |
89 |
% |
Rated input;rated load |
||
Dissipation,Standby |
3 |
5 |
W |
No load |
1.3Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output Voltage Set point |
4.95 |
5.00 |
5.05 |
Vdc |
Nominal input; No load. |
Output Voltage Range |
4.90 |
5.00 |
5.10 |
Vdc |
|
Output Current Range |
0 |
6 |
A |
||
Voltage Regulation |
±0.2 |
±1 |
% |
