Home > Products > DC-DC Converters > MIL-STD-1399 High power Low noise DC DC Converter 5V YN150-24S5-PEC

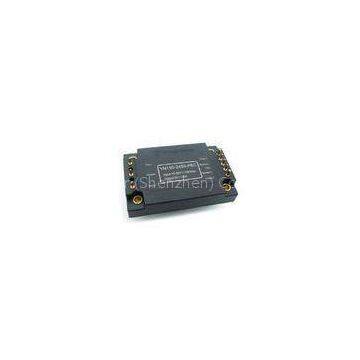

MIL-STD-1399 High power Low noise DC DC Converter 5V YN150-24S5-PEC
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | Enargy | Place of Origin: | China | Model Number: | YN150-24S5-PEC |
Product Description
DC-DC Converters 150W Output 5V YN150-24S5-PEC
Key Features
Output power: 150W
Wide input range: 18-36Vdc
High conversion efficiency: Up to 92%
Line regulation to ±1%
Load regulation to ±1%
Isolation voltage :1500V
Enable (ON/OFF) control
Output over-Current protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: ±8% Vout
Product Overview
These DC-DC converter modules use advanced power
processing, control and packaging technologies to provide
the performance, flexibility, reliability and cost effectiveness
of a mature power component. High frequency Active Clamp
switching provides high power density with low noise and
high efficiency.
1. Electric Characteristics
1.1 Absolute Maximum Ratings
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input Voltage |
45 |
Vdc |
Continuous, non-operating |
||
40 |
Vdc |
Continuous, operating |
|||
45 |
Vdc |
Operating transient protection,<100mS |
|||
Isolation Voltage |
2000 |
Vdc |
Input to Output |
||
Operating Temperature |
-40 |
100 |
℃ |
In view of PCB Temperature |
|
Storage Temperature |
-55 |
105 |
℃ |
||
Enable to -Vin Voltage |
-0.5 |
10 |
Vdc |
1.2 Input Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Input Voltage Range |
18 |
24 |
36 |
Vdc |
|
Under-Voltage Lockout |
17.5 |
17.9 |
Vdc |
Recovery point |
|
15.5 |
16.5 |
Vdc |
Protect point |
||
Maximum Input Current |
10 |
A |
Vin min,Output full load |
||
Efficiency |
91 |
% |
Rated input;Rated load |
||
Dissipation,standby |
12 |
W |
No Load |
||
External input |
100 |
1.3 Output Characteristics
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Output Voltage Set point |
4.96 |
5.00 |
5.05 |
Vdc |
Rated input voltage,No load |
Output Voltage Range |
4.95 |
5.00 |
5.05 |
Vdc |
Rated input voltage, load |
Output Current Range |
0 |
30 |
