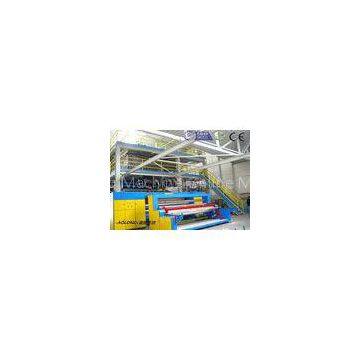

3200mm 4700T SSS PP Non Woven Fabric Making Machine Fineness 1.5~2.5dtex
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double Beams Spunbond PP Non Woven Making Machine With GSM 15~250g
-
Multi Function Spunbond PP Non Woven Fabric Making Machine 0~150m/min
-
1600mm SMS PP 400KW Nonwoven Fabric Making Machine For Operation Suit / Mask
-
Stainless Steel 304 Double Rotary Tablet Compression Machine Pharmaceutical Tablet Presser
-
Vehicle Automated Assembly Line Production System Equipment
-
Vertical Round Barrel Semi Automatic Sticker Labeling Machine By Stainless Steel 304
Product Details
| Brand Name | AL | Place of Origin | China | |
| Model Number | AL-1600SSS,AL-2400SSS,AL-3200SSS |
Product Description
Certification:CE,ISO9001
Fabric GSM 15~250 SSS PP Non Woven Fabric Making Machine /Finess 1.5~2.5dtex
Quick details
1> Model : AL-1600SSS , AL-2400SSS , AL-3200SSS
2> Width : 1600 to 3200mm
3> Fabric :GSM :15~250 g
4> Speed : 0~300m/min
6> Fineness : 1.5~2.5dtex
5> CE ; ISO9001
Parts Of PP Non Woven Fabric Equipment :
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter
Spun-Laid Process And Technical Flow Chart:
Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product
General Information For PP Non Woven Fabric Equipment
| Model No. | AL-1600SSS | AL-2400SSS | AL-3200SSS |
| Working Width | 1600mm | 2400mm | 3200mm |
| Fabric GSM | 15~250 | 15~250 | 15~250 |
| Power Input | 800KVA | 950KVA | 1600KVA |
| Consumption | 600~800KW | 600~800KW | 600~800KW |
| Annual Output | 4700T | 6900T | 9200T |
| Embossing Pattern | Diamond, Oval | ||
| Speed | 10~300m/min | ||
| Fineness | 1.5~2.5dtex |
Final non woven fabric
Fabric Usage
SSS spun bonded non woven fabric is composed of continuous filament, have good tensile strength and elongation, mainly for health and medical non woven products.
