Certification:CE, RoHS, EN62471

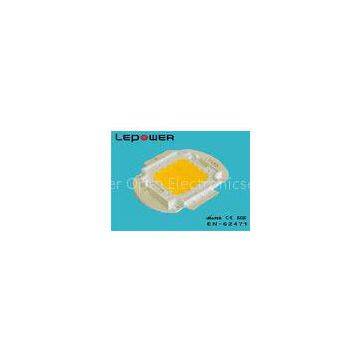

Bridgelux LED Module 60W 5000k Natural White Flood Light LED Module
Quick Detail:
60W power consumption 30-34V Voltage, max 2100mA Bridgelux 45mil led chip Warm white/Neutral white/Cool white optional Light efficiency 100-110lm/W, Ra>70 Size 40mmx40mm Working temperature -40—65℃ Beam angle 120° CE, RoHS, EN62471 compliance 3 years warrantyHigh Bay Light & Street Light 60W 6600Lm Bridgelux LED Module 5000K Nature White
Description:
Applications:
Specifications:
Package Dimensions
Equivalent circuit diagram
Notes:
1.All dimensions are in millimeters.
2.Tolerance is ±0.25 unless otherwise noted
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=2100mA |
6000 |
-- |
6600 |
lm |
|
Color Temperature/ Color coordinates |
CCT |
IF=2100mA |
2800 |
-- |
3200 |
K |
|
Forward Voltage |
VF |
IF=2100mA |
32 |
-- |
34 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=2100mA |
− − |
0.16 |
− − |
°C/W |
|
Reverse Current |
IR |
VR=34V |
− − |
− − |
2 |
μA |
|
Viewing Angle |
2Θ1/2 |
IF=2100mA |
− − |
120 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
60 |
W |
|
Continuous Forward Current |
IF |
2100 |
mA |
|
LED Junction Temperature |
TJ |
120 |
°C |
|
Reverse Voltage |
VR |
34 |
V |
|
Operating Temperature Range |
TOPR |
-20°C To +60°C |
|
|
Storage Temperature Range |
TSTG |
-40°C To +100°C |
|
|
Manual Solder Temperature |
TSOL |
350°C± 20°C For 3~5 Seconds |
|
|
ESD Sensitivity |
ESD |
2000V BM |
NOTE: (Tolerance: Iv ±10%, λd ±2nm, Vf ±0.05V)
Competitive Advantage:
1.Top brand materials. We use copper LED base, Bridg
