High Efficiency Cool White 3 Watt LED Bead , Bridgelux 45mil Chip

Name: High Efficiency Cool White 3 Watt LED Bead , Bridgelux 45mil Chip
Brand: Lepower
SKU: 149511454
Availability: InStock

High Efficiency Cool White 3 Watt LED Bead , Bridgelux 45mil Chip thumbnail-1

High Efficiency Cool White 3 Watt LED Bead , Bridgelux 45mil Chip photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Lepower

Place of Origin:

China

Model Number:

1W/3W

Contact Supplier Request Quote Chat Now

Lepower Opto Electronics

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Lepower

Place of Origin China

Model Number 1W/3W

Delivery Time:5-10 days
Certification:CE, RoHS, EN62471

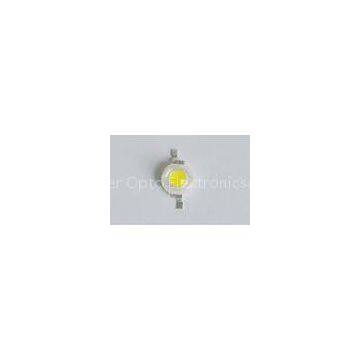

Cool white 3W high power led module with Bridgelux 45mil chip

Quick Detail:

3W consumption Single chip package, high light efficiency Bridgelux led chip3.4-3.6V, 550mA, up to 130lm/W Size: D8mm*L14.2mm Warm white/Neutral white/Cool white optional CE, RoHS, EN62471 compliance 2 years warranty

High Efficiency Cool White 3 Watt LED Bead , Bridgelux 45mil Chip

Description:

Exclusive package design, Super high lumens light source Several led chips available, easy selection with your goal. Different beam angle lens available, easy control your light

Applications:

Spotlight Down lignt Bulb Stage light

Specifications:

Dimension

Electrical/Optical Characteristics (At TA=25°C)

Parameter	Symbol	Conditions	Min.	Avg.	Max.	Units
Luminous Flux	Φ	IF=550mA	190	--	210	lm
Color Rendering Index	CRI	IF=550mA		70		Ra
Color Temperature/ Color coordinates	CCT	IF=550mA	2800	--	3000	K
Forward Voltage	VF	IF=550mA	3.2	--	3.4	V
Luminous efficiency	Φ	IF=550mA	110	--	120	Lm/W
Thermal Resistance Junction To Board	RΘJ-B	IF=550mA	− −	2	− −	°C/W
Reverse Current	IR	VR=17V	− −	− −	2	μA
Viewing Angle [1]	2Θ1/2	IF=550mA	− −	130	− −	Deg
