Certification:CE, RoHS, EN62471

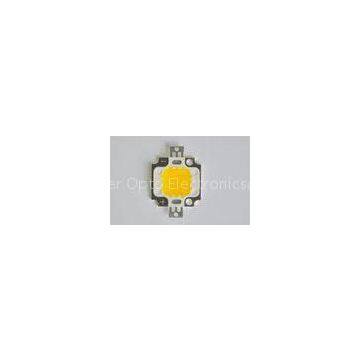

800lm 8W high power led module with Epistar led chip
Quick Detail:
8W power consumption Integrated package, high light efficiency Epistar led chip customized 24-27V,320mA, up to 100lm/W,Ra>70 Size: 20mm*20mm Warm white/Neutral white/Cool white optional Good thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source. Suitable for wide range applications, the variety of working environment. High light efficiency but low power consumption. With compact structure and convenient for welding operation. 2 years warranty800Lm 8W High Power LED Module 70 CRI With Epistar LED Chip
Description:
With compact structure and convenient for welding operation. Integrated package, 8-15W different power customized Super high lumens light source Several led chips available, easy selection with your goal. Thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source.Applications:
Flood light High bay light Track light Down lightSpecification:
Dimension
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=320mA |
750 |
-- |
850 |
lm |
|
Color Rendering Index |
CRI |
IF=320mA |
− − |
70 |
− − |
Ra |
|
Color Temperature/ Color coordinates |
CCT |
IF=320mA |
2800 |
-- |
3000 |
K |
|
Forward Voltage |
VF |
IF=320mA |
24 |
-- |
27 |
V |
|
Luminous efficiency |
Φ |
IF=320mA |
90 |
-- |
100 |
Lm/W |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=320mA |
− − |
2 |
− − |
°C/W |
|
Reverse Current |
IR |
VR=17V |
− − |
− − |
2 |
μA |
|
Viewing Angle [1] |
2Θ1/2 |
IF=320mA |
− − |
130 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
8 |
W |
|
Continuous Forward Current |
IF |
|
