Specifications
small led display 1) Price Advantage 2) Performance Advantage 3) Quality advantage 4) Service advantage
| MORE LED PRODUCT PLEASE CLICK ME! | |||
| 1 | LED WRITING BOARD | 5 | LED SINGLE-COLOR DISPLAY |
| 2 | LED OPEN SIGN | 6 | LED 3- COLOR DISPLAY |
| 3 | LED OIL PRICE SIGN | 7 | LED FULL- COLOR DISPLAY |
| 4 | LED ADVERTISING SIGN | 8 | LED CAR DISPLAY |
| CONTACT: EMILY WANG SOUTHOCEAN | |||

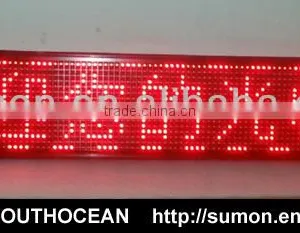

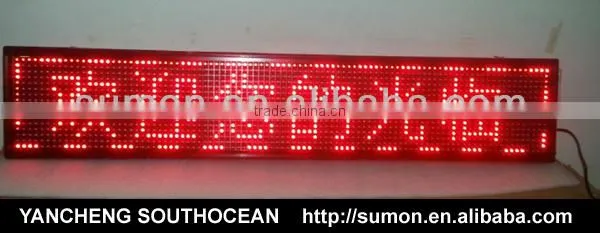

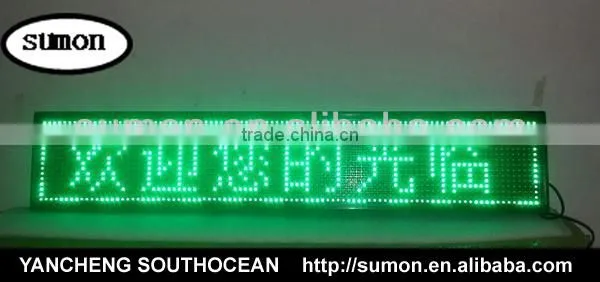

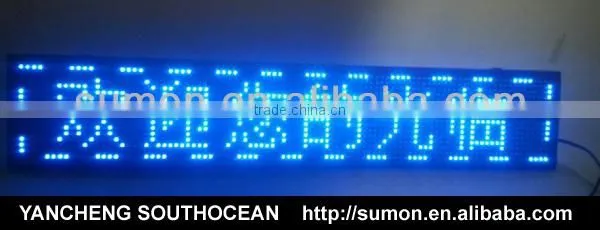

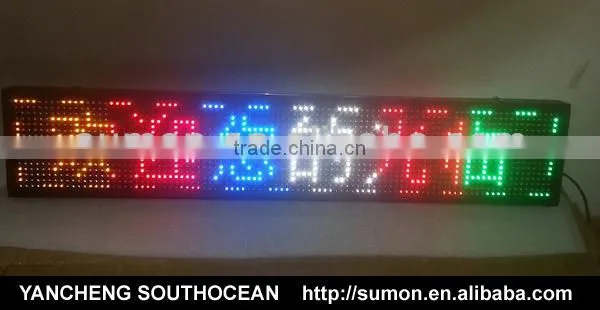

High definition small led display outdoor
Characteristic:
Standard assembly of modules volume is alternative, easy Installation
LED Display / led screen / led board / led moving message
Product Specification: P10mm, P12.5mm, P15mm, P20mm, P26.25mm and P30mm
Pixel Specification: 1R1PG1B
LED Specification: Korean Brand 5mm oval type super leds
LED Drive : 1/4scan
Brightness: >5000cd
Viewing Angle: 100(H) – 50(V)
Detailed Product Description:
1) Strong centralized control technology, Equipment is simple and complete
2) Software environment
3) Multimedia structure, screen directly controlled by the computer
4) Real-time 256 degree gray, reflect the true colors
5) Brightness adjustment
6) Support for multiple display mode
7) Contrast, brightness adjustment of the entire screen ion of Tube Core
8) The size and style can be customized as the requirements of customers
Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) To pictures and character, have clear, exquisite and real display effect
3) Big viewing angle to 100 degree at horizontal line, 50 degree at vertical line
4) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
* Products Advantages:
1) Price: we have the best competitive price, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle
3) Quality: We control all steps, that's the guarantee of the quality
4) Service : Better service at same situation, better cooperation at same service!
* Products list and application area:
1) Outdoor full color LED display : Equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment
3) Full spec, such as P10, P12.5, P15, P20, P26.25, P30 etc
Our Korea type modules as below:
| Items | 200*200 | 240*240 | 320*320 | 420*420 | 480*480 | |||||
| LED Encapsulation | DIP506 | DIP506 | DIP506 | DIP506 | DIP506 | |||||
| Pixel Pitch | 12.5MM | 15MM | 20MM | 26.25MM | 30MM | |||||
| Module Resolution | 16(W)*16(H) | 16(W)*16(H) | 16(W)*16(H) | 16(W)*16(H) | 16(W)*16(H) | |||||
| Module Size | 200MM*200MM | 240MM*240MM | 320MM*320MM | 420MM*420MM | 480MM*480MM | |||||
| Pixel Configuration | RG,RW,RB,R | RG,RW,RB,R | RG,RW,RB,R | RG,RW,RB,R | RG,RW,RB,R | |||||
| Pixel Density | 5000/sqm | 4166/sqm | 2500/sqm | 2380/sqm | 2083/sqm | |||||
| Driving Method | 1/8 Scan | 1/4,1/8 Scan | 1/4,1/8 Scan | 1/4,1/8 Scan | 1/4,1/8 Scan | |||||
| Driving IC | KOREA LDT | KOREA LDT | KOREA LDT | KOREA LDT | KOREA LDT | |||||
| Optimal Viewing Distance | >4M | >8M | >10M | >12M | >15M | |||||
| Working Voltage | DC5.0V | DC5.0V | DC5.0V | DC5.0V | DC5.0V | |||||
| Max Power Consumption | 1/8 Scan 15W | 1/4 Scan 27.5W | 1/4 Scan 27.5W | 1/4 Scan 27.5W | 1/4 Scan 27.5W | |||||
| 1/8 Scan 15W | 1/8 Scan 15W | 1/8 Scan 15W | 1/8 Scan 15W | |||||||
| Avg Power Consumption | 1/8 Scan 8W | 1/4 Scan 14W | 1/4 Scan 14W | 1/4 Scan 14W | 1/4 Scan 14W | |||||
| 1/8 Scan 8W | 1/8 Scan 8W | 1/8 Scan 8W | 1/8 Scan 8W | |||||||
| Operating Temperature | -10C°~ 50C° | -10C°~ 50C° | -10C°~ 50C° | -10C°~ 50C° | -10C°~ 50C° | |||||
| Lifetime | 45000 Hours | 45000 Hours | 45000 Hours | 45000 Hours | 45000 Hours | |||||
| Viewing Angle | H:110° V:50° | H:110° V:50° | H:110° V:50° | H:110° V:50° | H:110° V:50° | |||||
| Brightness | 1/8 Scan (CD/sqm) | 1/4 Scan (CD/sqm) | 1/8 Scan (CD/sqm) | 1/4 Scan (CD/sqm) | 1/8 Scan (CD/sqm) | 1/4 Scan (CD/sqm) | 1/8 Scan (CD/sqm) | 1/4 Scan (CD/sqm) | 1/8 Scan (CD/sqm) | |
| RG | 4000 | 5000 | 3000 | 3500 | 2500 | 2700 | 1900 | 2300 | 1500 | |
| RW | 6000 | 6500 | 4800 | 5000 | 3500 | 3800 | 2600 | 3300 | 2000 | |
| RB | 2000 | 2000 | 1200 | 2800 | 1500 | 1400 | 900 | 1100 | 800 | |
