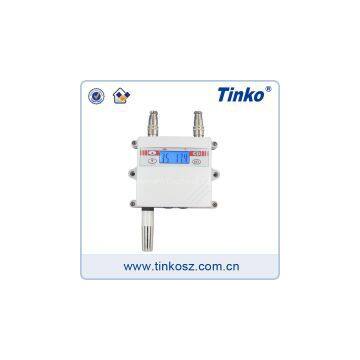

Tinko TKSE LCD Multi-functional Relay Output Temperature Humidity Transimitters 4-20mA

Introduction

TKSE digital Temperature Humidity sensor which Adopt integrated design is widely used for measureing in HVAC.It has import search unit,intelligent core structure,and more output signals selectable. the sensor with dependable performance, long perfomance life, fast Response time.and ,it is used with temperature &humidity controllers to monitor and control the temperature and humidity.

Application area

Widely used for communication room,office room,workshop,storehouse,hospitals,,monument room,museum,refrigeratory,HVAC and so on.also used on the machine of humidification or dehumidification.

Features

1)Response time:<10s

2)Sensor and probe:0 ~50 ℃, 0 to 85% RH

3)Working condition: -10~60℃Separate type: -10~60℃(housing),-10~110℃(probe)

4)Output signal:4-wire 4~20mADC /0~10V/RS485 (optional)

5)Load Capacity:Current:<500Ω Voltage:>3KΩ

6) Relay output:1~4 relay to select

7)Cable:PG7 cable gland

8)Installation Method:Wall  mounting

9)Accuracy:

  Grade A.±0.3℃(0~50℃), ±2%RH(5%RH~95%RH,25℃);

  Grade B.±0.5℃(0~50℃), ±3%RH(5%RH~95%RH,25℃)

10)Long-term stability: Humidity <1% RH / year

                        Temperature <0.1 ℃ / year

11) Range:T:0~50℃or -10~110℃,H:0%~100%RH

12)LCD display:Background color:blue;2 digits on the right indicate humidity,3 digits on the left indicate temperature.

13) Memory function(optional)

Selection Table
