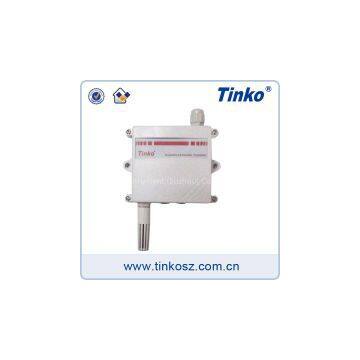

Tinko TKSF Exquisite Wall-mounted Temperature Transmitter 0-10V for HVAC

Introduction

TKSF digital Temperature Humidity sensor which Adopt integrated design is widely used for measureing in HVAC.It has import search unit,intelligent core structure,and more output signals selectable. the sensor with dependable performance, long perfomance life, fast Response time.and ,it is used with temperature &humidity controllers to monitor and control the temperature and humidity.

Application area

Widely used for communication room,office room,workshop,storehouse,hospitals,,monument room,museum,refrigeratory,HVAC and so on.also used on the machine of humidification or dehumidification.

Features

1)Response time:<10s

2)Sensor and probe:0 ~50 ℃, 0 to 85% RH

3)Working temperature:-10~60℃

4)Output signal:4-wire 4~20mADC /0~10V/RS485 (optional)

5)Load Capacity:Current:<500Ω Voltage:>3KΩ

6)Cable:PG7 cable gland

7)Installation Method: Wall mounting

8)Shell Size: ABS100x68x50mm

9)Accuracy:

    Grade A.±0.3℃(0~50℃), ±2%RH(5%RH~95%RH,25℃);

    Grade B.±0.5℃(0~50℃), ±3%RH(5%RH~95%RH,25℃)

10)Long-term stability: Humidity <1% RH / year

                        Temperature <0.1 ℃ / year
