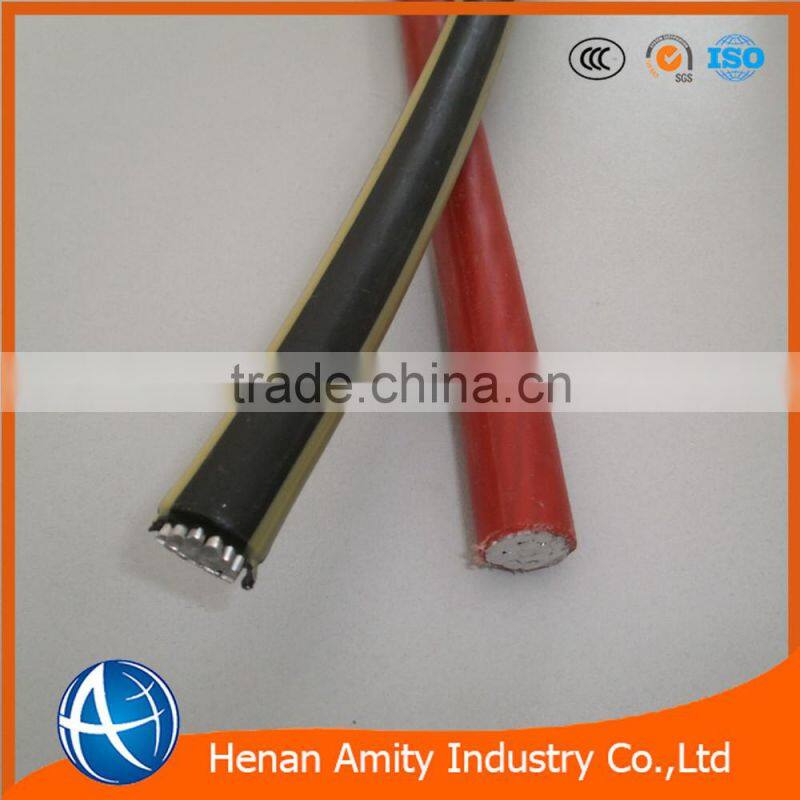

Service drop cable
1.Applications of Service drop cable
Service Drop Cable(ABC CABLE) are mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
2. Type of Service Drop Cable:
Service Drop Cable(ABC CABLE) covers mainly three types:

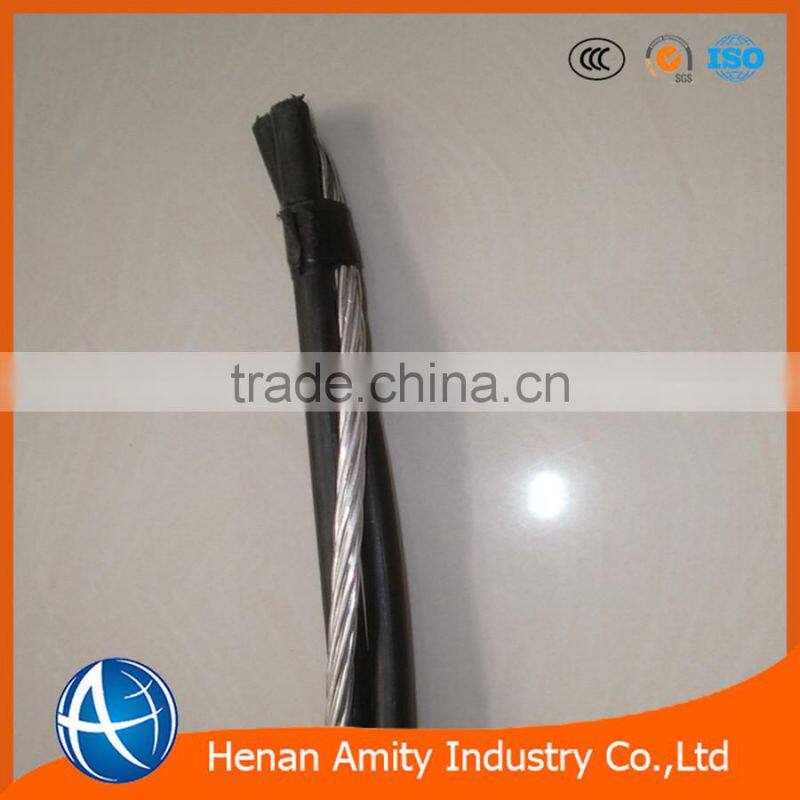

Duplex Service Drop

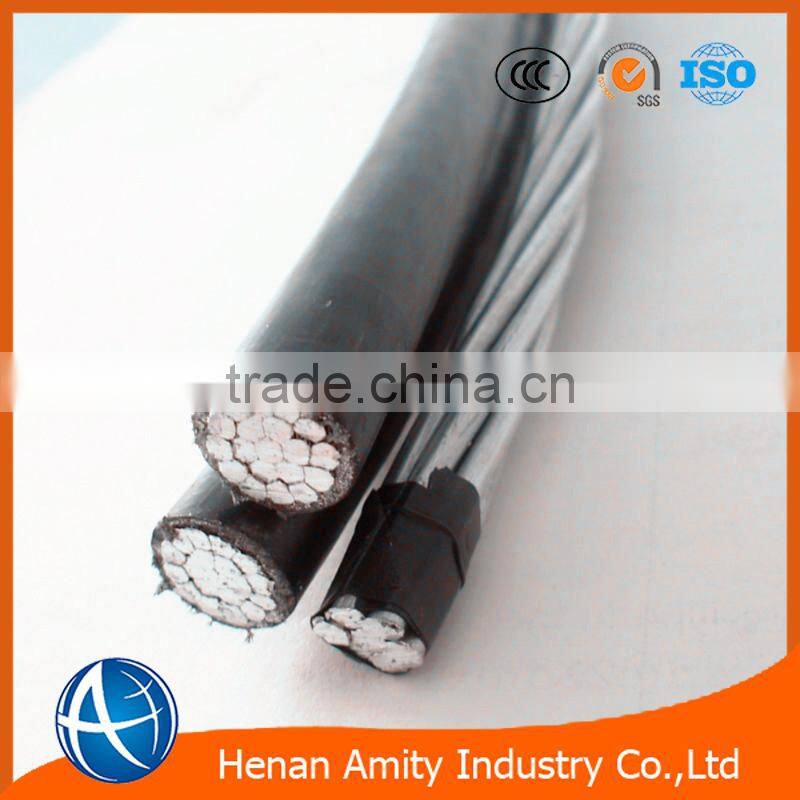

Triplex Service Drop
Quadruplex Service Drop

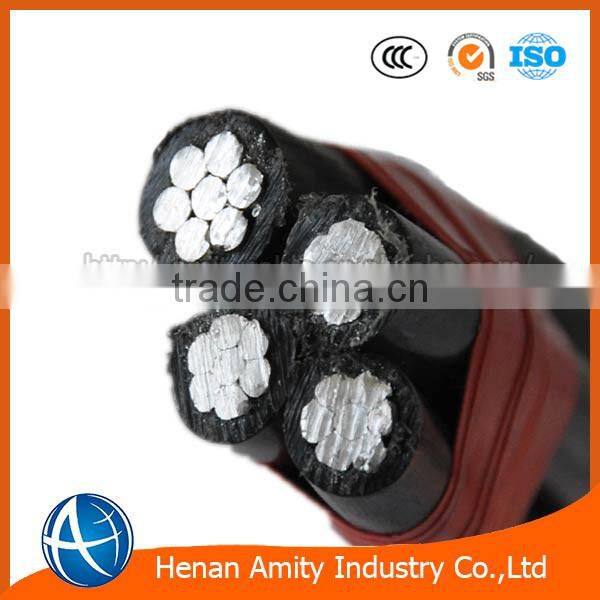

3. construction of Service Drop Cable
Phase Conductor Construction
The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.
Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:
Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded
Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)
Alternatively, blackpolyethylene (PE) insulation with a 75°C temperature rating is available upon request.
4.Standard
Service drop cable meets or exceeds the following specifications:
Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
B-230 Aluminum Wire 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
5. size range
Service Drop |
ICEA S-76-474 |
Duplex Triplex Quadruplex |
6AWG~1/0AWG 6AWG~336.4kcmil 6AWG~336.4kcmil |
Services
Why choose us?
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials,Strict quality control system
3) Customized sizes,OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, DDU, DDP, etc
2) Sample time: Nearby 3-5days, distance 5-7days.
3) Production time: 10-30days(Depends on the Qty) upon advanced payment received

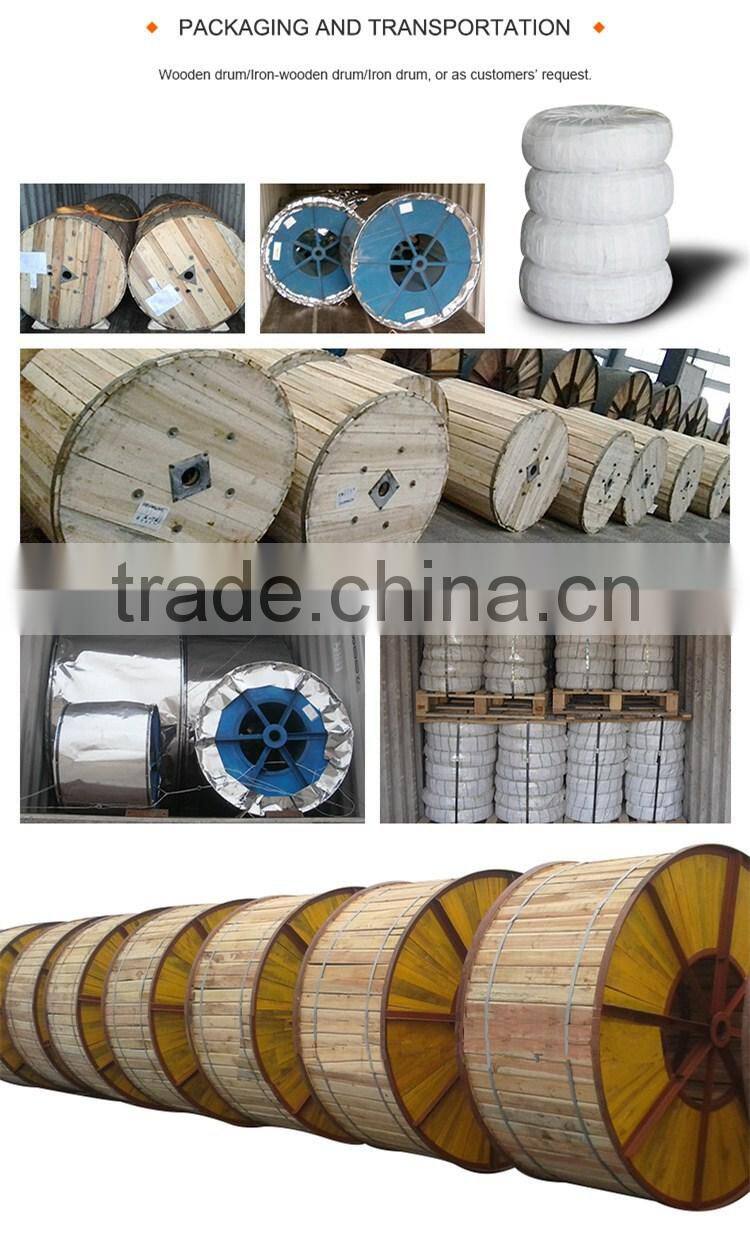

4) Packing: export standard cartons,drums or customized as per customers’ request
FAQ
[Q] What’s your company 's principle products?

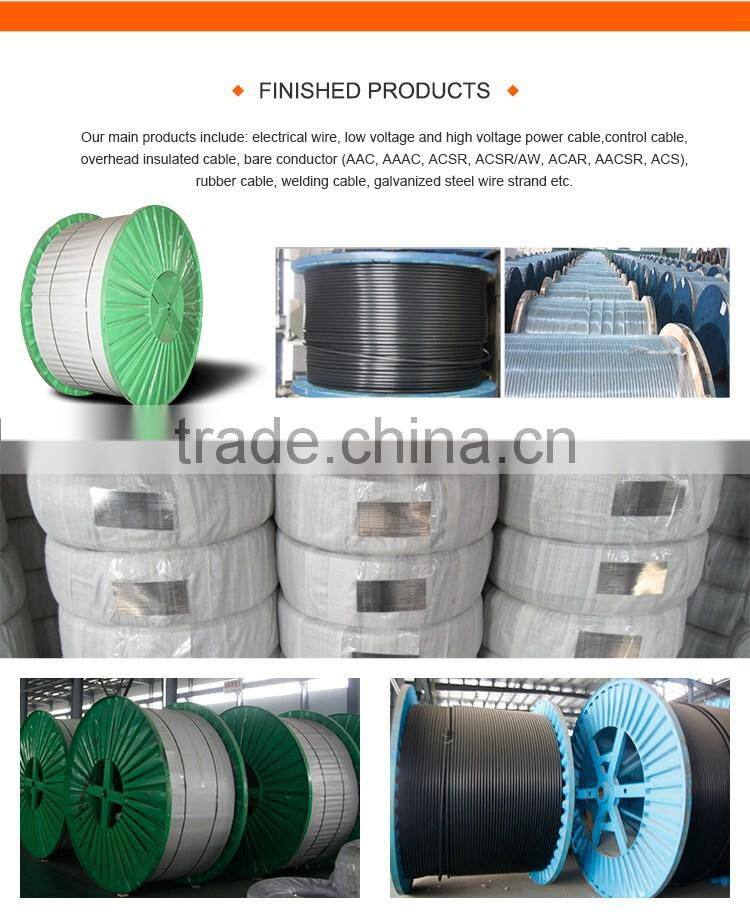

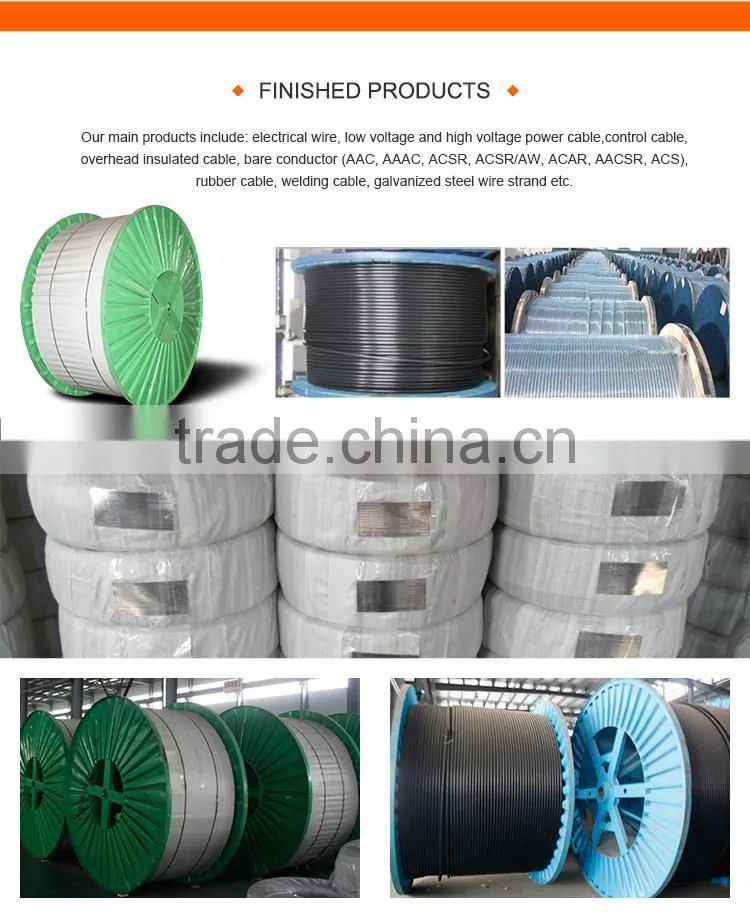

[A] Wire & cable:
Electric wire;Power cable 35kv or below;Overhead bare conductor AAC,ACSR,AAAC,ACAR,AACSR;
Aerial bundle cable; Control cable;Rubber cable& Welding cable
Winding wire/magnet wire
Enameled copper,aluminum,cca wire;Paper covered wireFiberglass covered wire
Galvanized steel wire&strands
[Q] How about your company's production capacity?
[A] Wire& cable:5000km per month
Winding wire/magnet wire:1000 tons per month
Galvanized steel wire&strands:2000 tons per month
[Q] Is there a regular management review of Quality performance Indicators
– Customer satisfaction, on time delivery, Supplier quality, in house scrap ,
in house rejects, Customer returns, etc. ?
[A] Yes, we have for all the ones listed above
[Q] How can I get a sample to check your quality?
[A] After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
[Q] what payment terms you can accept?
[A] The payment terms we usually operated is L/C,T/T with deposit and the Payapl,Western Union,
VISA MASTER CARD for small count of order.
