Product Details
| Brand Name | SANXIANG | Place of Origin | China | |
| Model Number | YDK83-XX-2 / YDK83-XX-4 / YDK83-XX-6 |
Product Description
Certification:ISO 9001, CCC, CE

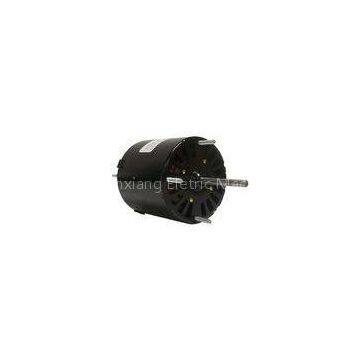

Single Phase Blower Motors, 3.3 inches, 60 Hz 240V
Quick Detail:
3.3” VENTING MOTORS, SINGLE PHASE , PSC
Description:
3.3” venting motors are special designed for heater, venting , air-conditioner system or similare applications
110V-120V, 208V-240V, 50Hz/60Hz 2 poles, 4 poles or 6 poles Class B or F insulation Ball beariing design to avoid maintain in whole motor life Auto thermal overload protection. IP20 – IP44 protection level as per customer requirement Single or double shafts , single / three or multipe speeds design Motor performance & dimensions are customizable according to customer requirementApplications:
HEATER, VENTING ,AIR-CONDITIONER SYSTEM OR SIMILAR APPLICATIONS
Specifications:
|
Motor Type |
Output |
Input |
Current |
Speed |
Noise |
|
W |
W |
A |
r/min |
dB(A) |
|
|
YDK83-10-4 |
10 |
34 |
0.15 |
820 |
≤37 |
|
YDK83-12-4 |
12 |
41 |
0.19 |
900 |
≤40 |
|
YDK83-18-4 |
18 |
48 |
0.22 |
1130 |
≤42 |
|
YDK83-28-4 |
28 |
68 |
0.31 |
1120 |
≤44 |
|
YDK83-30-4 |
30 |
76 |
0.35 |
1030 |
≤44 |
|
YDK83-40-4 |
40 |
81 |
0.37 |
1160 |
≤46 |
Competitive Advantage:
LOW TEMPERATURE RISE, LOW NOISY , LOW VIBRATION, HIGH EFFIEIENCY
