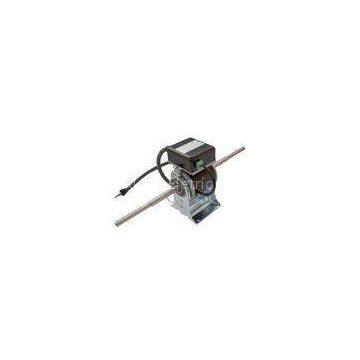

80Watt Fan Coil ECM Brushless DC Motor , 60 Hz IP43 230V BLDC Motors

Delivery Time:15-30 DAYS
Certification:ISO 9001, CCC, CE

80Watt Fan Coil ECM Brushless DC Motor , 60 Hz IP43 230V BLDC Motors

Quick Detail:

BLS(D)K-90, BLDC fan coil motors, Brushless DC motor

Description:

BLS(D)K-90 series motors are special designed for fan coil unit of centrial air conditioner

115V 60Hz, or 220V-240V 50/60Hz Output power from 6 watts to 80watts Rated speed from 400 RPM tp 1700 RPM , 8 poles , stepless speed adjustment. Class B insulation FOC control , no hall signal required , 0-10v VSP speed control Ball beariing design to avoid maintainance in whole motor life Copper winding wire and cold rolled silicon steel design to achieve high efficiency with low temperature rise for long motor life, low noisy and less vibration IP43 protection level Rolled steel with powder coated motor frame or alumimum extrusion with anodizing motor frame. Nickle plated shaft or phosphating treated shaft Bracket mounting , motor central height from 90mm to 105mm

Applications:

FAN COIL UNIT FOR CENTRAL AIR CONDITIONERS

Specifications:

FOR 220V/50Hz

Motor Type Output(w) Input(w) Speed (r/min) Current(A) BLS(D)K-6-8 6 ≤20 700 ≤0.16 BLS(D)K-40-8 40 ≤60 1200 ≤0.51 BLS(D)K-80-8 80 ≤123 1350 ≤0.97

Competitive Advantage:

LOW NOISE , HIGH EFFICIENCY , LOW VIBRATION
