Home > Products > Magnet Wire > Large Quantities Of Copper Clad Aluminum Wire

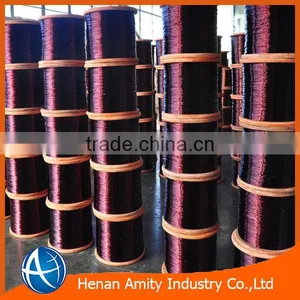

Large Quantities Of Copper Clad Aluminum Wire
- 1000000 Ton / Tons per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Amity | |
| Model Number | copper clad aluminum wire | Type | Bare | |
| Application | Heating | Conductor Material | Copper Clad Aluminum | |
| Conductor Type | Solid |
Product Description
Specifications
Large Quantities Of Copper Clad Aluminum Wire:1.Good conductivity
2.Competitive price and high quality
3.Low pollution
Large Quantities Of Copper Clad Aluminum Wire
Advantage
1.Good conductivity: the conductivity is the same as pure copper wire when the frequency is higher than 5 MHZ
2.Save copper resource, reduce the product cost:the CCA'S density is 3.7-40% of the pure copper wire, and the length is 2.5-2.7 times of pure copper wire, at the same weight.
The range of product
The CCA we can produce is 0.04-5.15mm and we also can produce as customer's requirements
Technical specification
Nominal diameter(mm) | Tensile strength(Mpa) | Elongation min% in 10 in(or 250mm) | ||
Min.of H classes | Max. of A classes | H classes | A classes | |
5.15 | 152 | 138 | 1.5 | 20 |
4.62 | 159 | 138 | 1.5 | 20 |
4.12 | 166 | 138 | 1.5 | 20 |
3.66 | 172 | 138 | 1.5 | 20 |
3.26 | 179 | 138 | 1 | 20 |
2.91 | 186 | 138 | 1 | 20 |
2.59 | 193 | 138 | 1 | 20 |
2.3 | 200 | 138 | 1 | 20 |
2.05 | 205 | 138 | 1 | 20 |
1.83 | 205 | 138 | 1 | 20 |
1.63 | 205 | 138 | 1 | 20 |
1.45 | 205 | 138 | 1 | 20 |
1.29 | 205 | 138 | 1 | 15 |
1.15 | 205 | 138 | 1 | 15 |
1.02 | 205 | 138 | 1 | 15 |
0.912 | 205 | 138 | 1 | 15 |
0.813 | 205 | 138 | 1 | 15 |
0.724 | 205 | 138 | 1 | 15 |
0.643 | 205 | 138 | 1 | 15 |
0.574 | 205 | 172 | 1 | 15 |
0.511 | 205 | 172 | 1 | 15 |
0.455 | 205 | 172 | 1 | 15 |
0.404 | 205 | 172 | 1 | 10 |
0.361 | 205 | 172 | 1 | 10 |
0.32 | 205 | 172 | 1 | 10 |
0.287 | 205 | 172 | 1 | 10 |
0.254 | 205 | 172 | 1 | 10 |
0.226 | 205 | 172 | 1 | 5 |
0.203 | 205 | 172 | 1 | 5 |
0.18 | 205 | 172 | 1 | 5 |
0.16 | 205 | 1 | 5 | |
0.142 | 205 | 172 | 1 | 5 |
0.127 | 205 | 172 | 1 | 5 |
