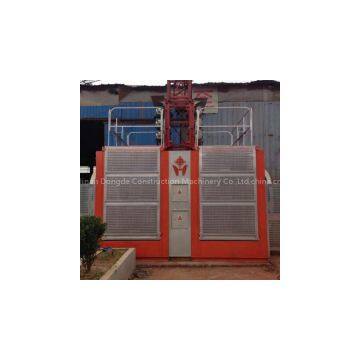

Dongde brand SC200/200builder's lift is provided with reliable electric and mechanical interlockingsafety device,with safety switch,upper and lower limit switches,extreme limitswitch,safety protection hook and other electromenchanical interlock switches.
Advanced inching type anti-droppingsafety device,sensitive and reliable overload protection device and advancedcomputerized automatic shelving device are your best choice.

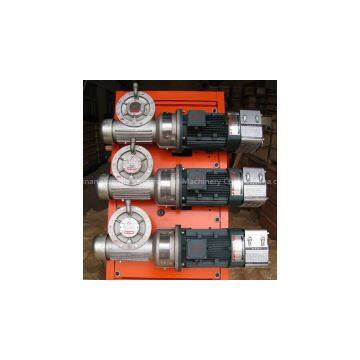

Complete with imported original frequencyconversion speed governing system,high-quality motor and reducer,the liftingspeed is 0-36m/min,satisfying the requirements of all users.
Frequency conversion speed regulation builder'slift has the following characteristics:
1.Smooth starting and braking,without impact;
2.Lifing speed is adjustable by driver;
3.Starting current is smaller than ratedcurrent;
4.Low mechanical wearing.Impact-free startingallows low mechanical wear to gears and wears,especially to brake;
5.Remarkable energy saving effects.
Computerized automaitc shelving builder's lifthas the following characteristics:
1.Simple structure with single chipmicroprocessor controler,stroke waitch for signal input;
2.Dropping and rising back beforestop,overcoming the movement inertia by using the dead weight of cradle,makingthe maximum deviation less than 75px;
3.Protection against unauthorized operation;
4.Excellent interference free performance.
Type specification
Rated load(kg): 2*2000
Rated erection load(kg): 2*1000
Jib attachment rated load(kg):300/600
Cage size(m):3.0*1.3*2.4 3.0*1.5*2.4
Lifting speed(m/min):33
Rated output(kw):2*3*11
Rated frequency(Hz):50/60
Rated current(A):2*2*33.2
Voltage rating(V):~380±5﹪
Power supply fuses(A):2*96
Protective class:IP55
The durative rate of electrifying:FC-25﹪
Safety device(m/s):1.2
Snclosure weight(kg):1480
Cage weight(kg):2*2000
Mast section weight(kg):150/170/190/210
Mast section length(mm):1508
