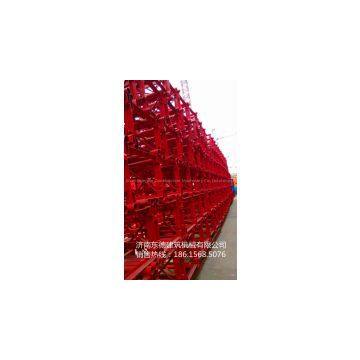

SC-type construction is a lift by the gear, rack drive elevator,mainly for high-rise building construction people, goods transportation, thislift can be very convenient installation and removal;and higher as the building.
SC-type construction of the lift hasa very reliable electrical and mechanical safety systems is the construction ofsafe and efficient transportation equipment.
Features:
Direct start-up and stop;
Simplicity and cost saving;
Installation, removal is very conenient.
Main technical data
Rated load(kg): 2*2000
Rated erection load(kg): 2*1000
Jib attachment rated load(kg):300/600
Cage size(m):3.0*1.3*2.4 3.0*1.5*2.4
Lifting speed(m/min):33
Rated output(kw):2*3*11
Rated frequency(Hz):50/60
Rated current(A):2*2*33.2
Voltage rating(V):~380±5﹪
Power supply fuses(A):2*96
Protective class:IP55
The durative rate of electrifying:FC-25﹪
Safety device(m/s):1.2
Snclosure weight(kg):1480
Cage weight(kg):2*2000

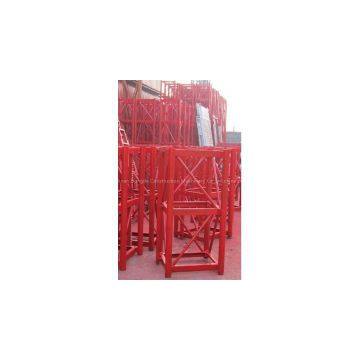

Mast section weight(kg):150/170/190/210
Mast section length(mm):1508
