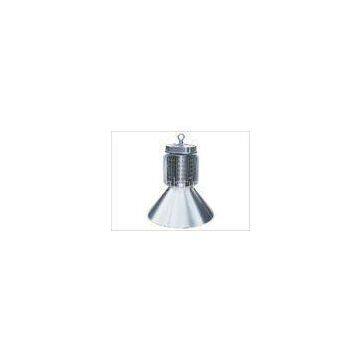

Outdoor 240W Stadium Bridgelux LED High Bay Light Fixtures Super Bright 21600lm

Outdoor 240W Stadium Bridgelux LED High Bay Light Fixtures Super Bright 21600lm thumbnail-1
Outdoor 240W Stadium Bridgelux LED High Bay Light Fixtures Super Bright 21600lm photo-1
Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YICAI/OEM
Place of Origin:
China
Model Number:
YC-HB240-01
Contact Supplier Request Quote Chat Now
Shenzhen Yicai Lighting Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YICAI/OEM
Place of Origin China
Model Number YC-HB240-01
Delivery Time:10-20days
Certification:CE/ROHs/SAA/C-Tick

Super Bright C-Tick 240W Stadium Bridgelux LED High Bay Light Fixtures 216000lm


Quick Detail:

Model Name: YC-HB240-01 Color temperature:3000K/4000K/5000K/6500K CRI: Ra> 80 LED Brand: American Bridgelux 45mil Light efficiency:>85LM/W Certification:CE/ROHS/C-TICK/SAA Thermal Conductivity of thermal grease: >5.0W/m.k Beam Angle: 45° /90°/ 120° Input Voltage: AC90 ~ 305V Warranty: 5 Years Lumen Effiency:above 90lumens/watt Proection Rate: IP42/IP65 Finishing: Silver

Description:

240W, Bridgulux Chip, Mean Well Driver COB LED High Bay Light has a unique shape, streamlined and stylish lines which integrate perfectly in modern architecture with highly ornamental value.

Product features:

►High Ra COB LED with Bridgelux LED chip,ultra bright
►AC90V to 305V Input voltage are available to meet different installation condition.
►Adopt Taiwan Meanwell power to ensure the lamp work better
►Unique patented thermal management design to ensure excellent heat dissipation
    and long lifespan of LEDs
►Available with aluminum reflectors with different beam angles
►Highly energy saving, 60% over metal halide lamp
►Environmental-friendly, no UV, no Mercury or other Hazardous substances
►IP65 rating are available for various applications
►Changeable beam angle and CCT 2700K-6500K available
►Extremely light weight to ensure safety use and installation




Parameters:


Lamp Material Aluminum Colr index Ra>80
Beads type COB CCT 2700~6500k
Brand chip Bridgelux IP Rating IP42/IP65
Input voltage 90~305V Storage temperature -20°C~+45°C
Frequence 47~63Hz Surface temperature 50°C(test in 25°C)
Power Factor >0.95 Lifespan 50,000 hours
Power consumption 240W Lamp Size Φ500*565mm
Power efficiency >92% Box Size 30*30*49.5cm
Beam Angle 45°/90°/120° QTY/Box 1PCS
Luminance 21120±50lm Box Weight 9.2KG



Lamp size:





Package of reflector :


Reflecotr angle 45° 90° 120°
Lamp size Φ420*250mm Φ500*190mm Φ500*140mm
Box size 44*44*40cm 53*53*25cm 53*53*34cm
Box weight 2KG 2.2KG 2.3KG
QTY/Box 10PCS 10PCS 10PCS



Product Details :





Certification:






Application:

  Warehouses & Production workshops
  Shopping malls & Indoor stadiums
  Toll and petrol stations and other industrial and commercial lighting purposes
