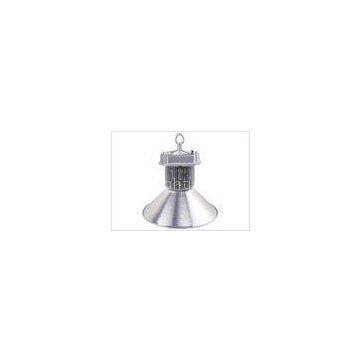

Super Brightness 100W COB Industrial LED High Bay Lighting Cold White

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YICAI/OEM		Place of Origin	China
Model Number	YC-HB100-01

Product Description

Delivery Time:10-20days
Certification:CE/ROHs/SAA/C-Tick

100W COB Meanwell Bridgelux Led High Bay Lighting Fixtures for Warehouses

Quick Detail:

Model Name: YC-HB100-01 Color temperature:3000K/4000K/5000K/6500K CRI: Ra> 80 Light efficiency:>85LM/W Certification:CE/ROHS/C-TICK/SAA Input Voltage: AC90 ~ 305V LED Brand: American Bridgelux 45mil Thermal Conductivity of thermal grease: >5.0W/m.k Beam Angle: 45° /90°/ 120° Lumen Effiency:above 90lumens/watt Warranty: 5 Years Proection Rate: IP42/IP65 Finishing: Silver

Product features:

►High Ra COB LED with Bridgelux LED chip,ultra bright

►Unique patented thermal management design to ensure excellent heat dissipation

and long lifespan of LEDs

►Changeable beam angle and CCT 2700K-6500K available

►Extremely light weight to ensure safety use and installation

►AC90V to 305V Input voltage are available to meet different installation condition.

►Adopt Taiwan Meanwell power to ensure the lamp work better

►Available with aluminum reflectors with different beam angles

►IP65 rating are available for various applications

►Highly energy saving, 60% over metal halide lamp

►Environmental-friendly, no UV, no Mercury or other Hazardous substances

Certification:

Parameters:

Lamp Material	Aluminum	Colr index	Ra>80
Beads type	COB	CCT	2700~6500k
Brand chip	Bridgelux	IP Rating	IP42/IP65
Input voltage	90~305V	Storage temperature	-20°C~+45°C
Frequence	47~63Hz	Surface temperature	50°C(test in 25°C)
Power Factor	>0.93	Lifespan	50,000 hours
Power consumption	100W	Lamp Size	Φ500*455mm
Power efficiency	>93%	Box Size	25.525.533cm
Beam Angle	45°/90°/120°	QTY/Box	1PCS
Luminance	8500±50lm	Box Weight	4.6KG

Lamp size:

Package of reflector :

Reflecotr angle	45°	90°	120°
Lamp size	Φ420*250mm	Φ500*190mm	Φ500*140mm
Box size	444440cm	535325cm	535334cm
Box weight	2KG	2.2KG	2.3KG
QTY/Box	10PCS	10PCS	10PCS

Product Details :

Warehouses & Production workshops
Shopping malls & Indoor stadiums
Toll and petrol stations and other industrial and commercial lighting purposes

Application:
