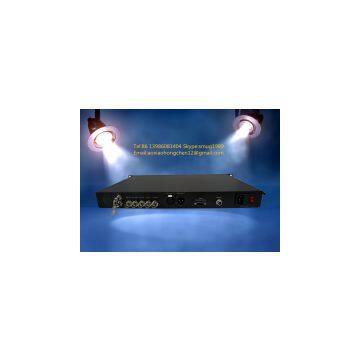

SDI studio fiber System (JM-EFP-S13) consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit a 3G/HD-SDI signal from the camera side to the Base Station and a return video (3G/HD-SDI),1x TC ,Sony Remote control data,intercom(support clearcom), 2xTally, The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto 2xSM fiber with ST interface.
SDI studio fiber System (JM-EFP-S13) Power supply:

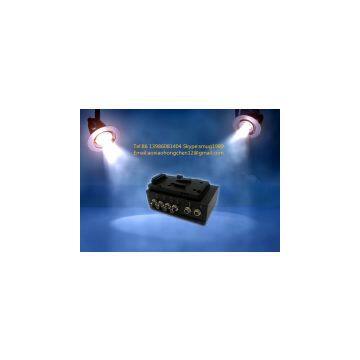

This product is the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A shaped gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;and there’s space for Lemo opto-electric hybrid cable power supply in the future.
SDI studio fiber System (JM-EFP-S13) Features:
Easily pass the Pathological test(extremely harsh environments)
SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
Uncompressed lossless transmission without delay;
More than 10KM transmission distance up to a maximum 80KM; when the opto-electric hybrid cable power supply the distance up to 250 meters.
Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, V-type with a flexible pinch;
Supports Sony Remote control
Mic level input (with mute function) and amp functions (volume adjustment)
Tally output +12V or dry Contact Closure optional
Wide temperature range, low power consumption
V-mount battery optional
SDI studio fiber System (JM-EFP-S13) Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
