Help Center1U Rack Mounted 4K Broadcast SDI Fiber Optic Adapter and Base Station,4K EFP Camera Fiber System With Tally,remote,intercom,ethernet for OBVAN System
Related Products
-
EFP Camera Fiber System With V-Lock Camera Fiber Adaptor, Remote,tally,return SDI,genlock,intercom for 4 Camera OB Truck SystemUS$ 1 - 1MOQ: 1 Set -
Anton Bauer SONY Camera Fiber System ,Bidi 3GSDI With Remote,tally,return Video,genlock,intercom for OBVAN ApplicationUS$ 2300 - 2300MOQ: 1 Case
-
EFP Camera Fiber Optic Connection System（JM-EFP-S12)for Remote Mobile Studio SystemUS$ 5000 - 5000MOQ: 1 Set
-
V-LOCK Live-Link Remote EFP Camera Interface System With LEMO EDW（JM-EFP-S3)US$ 2750 - 2750MOQ: 1 Set
-
V-Lock Live-Link Fiber Optic Camera Adapter and Optic Fiber Base Station With LEMO EDW （JM-EFP-S3)US$ 2750 - 2750MOQ: 1 Set

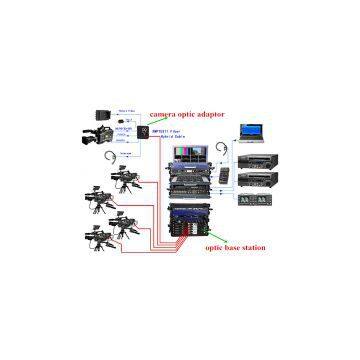

EFP camera fiber optic connection system consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to achieve Forwarding SD / HD / 3G-SDI video, reverse video (SDI digital or analog composite CVBS signal), TALLY , Intercom, Remote control, GEN-lOCK, Ethernet signals 10KM transmission over an optical
.
Features:
easily pass the Pathological test(extremely harsh environments)
SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
Uncompressed lossless transmission without delay;
More than 10KM transmission distance up to a maximum 80KM; when the opto-electric hybrid cable power supply the distance up to 250 meters.
Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, A-type or V-shaped with a flexible pinch;
Supports Sony / Panasonic / JVC, etc. Remote control
Mic level input (with mute function) and amp functions (volume adjustment)
Tally / GPI output or charged dry output
Wide temperature range, low power consumption
Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
Description:
1x 3G-HDSDI, forward direction (from tx);1x4K SDI(3x3GSDI),forward direction
1 x 3G-HDSDI, Reverse direction
2 x Audio, bi-direction, unbalanced audio,
1 x RS422 data, full-duplex mode
1 x RS232 bi-directional
1 x RS485 bi-directional
1 x Analog video
1 x Tally
1 x 100M Ethernet
