Help CenterFilm Camera Fiber System (JM-EFP-S4) With Film Camera Fiber Adaptor and Optic Base Station for Remote OB VAN System
Related Products
-
1U Rack Mounted 4K Broadcast SDI Fiber Optic Adapter and Base Station,4K EFP Camera Fiber System With Tally,remote,intercom,ethernet for OBVAN SystemUS$ 1 - 1MOQ: 1 Set -
EFP Camera Fiber System With V-Lock Camera Fiber Adaptor, Remote,tally,return SDI,genlock,intercom for 4 Camera OB Truck SystemUS$ 1 - 1MOQ: 1 Set
-
Anton Bauer SONY Camera Fiber System ,Bidi 3GSDI With Remote,tally,return Video,genlock,intercom for OBVAN ApplicationUS$ 2300 - 2300MOQ: 1 Case
-
EFP Camera Fiber Optic Connection System（JM-EFP-S12)for Remote Mobile Studio SystemUS$ 5000 - 5000MOQ: 1 Set
-
V-LOCK Live-Link Remote EFP Camera Interface System With LEMO EDW（JM-EFP-S3)US$ 2750 - 2750MOQ: 1 Set

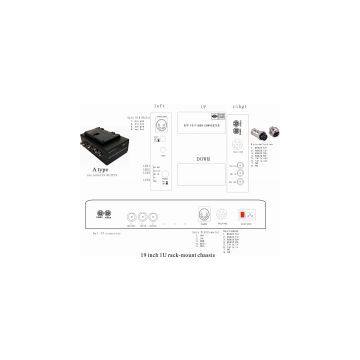

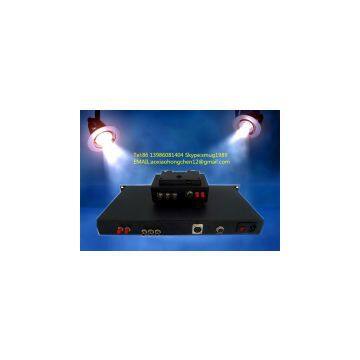

FilmCameraFiberSystem (JM-EFP-S4) consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit a 3G/HD-SDI signal from the camera side to the Base Station and 1return videos (1x3G/HD-SDI), Remote control data,(1x full-duplex RS422) ,genlock, intercom(Mic audio input at TX,line level balanced audio output at RX side) , tally(dry contact closure), 1xReverse audio(1x line-level balanced audio input at RX side and output at TX sdie). The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto a SM / MM fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
FilmCameraFiberSystem (JM-EFP-S4)Power supply:
the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;
FilmCameraFiberSystem (JM-EFP-S4)Features:
Easily pass the Pathological test(extremely harsh environments)
SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
Uncompressed lossless transmission without delay;
More than 10KM transmission distance up to a maximum 80KM; when the MM fiber ,the distance up to 300 meters.
Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, A-type with a flexible pinch;
Supports Sony / Panasonic / JVC, etc. Remote control
Mic level input (with mute function) and amp functions (volume adjustment)
Tally/GPI output +12V or dry Contact Closure optional
Wide temperature range, low power consumption
A-mount battery optional
FilmCameraFiberSystem (JM-EFP-S4)Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
