Inverter Arc Stud Welder of Dia 10 - 25mm 380V For Boiler , Transformer

Inverter Arc Stud Welder of Dia 10 - 25mm 380V For Boiler , Transformer

Inverter  Drawn arc stud welder which could weld dia 10-25mm stud and shear connector .

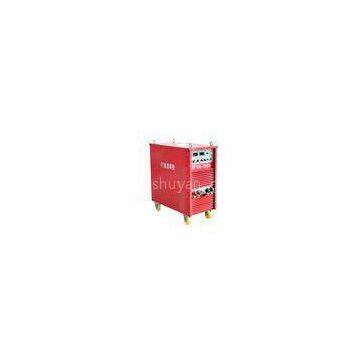

RSN-2500I inverted arc stud welding machine is featured with small size, light weight and easy to move. It is suitable for outdoor operation with advanced technology and it is energy-saved.

It sells well in General Industry , also with decoration industry.

RSN-2500I 3 / 25mm, 6 / 22mm, 10 / 19mm Inverter Arc Stud Welder

Functions:

By welding Arc welding studs with material for copper plated, stainless steel and AL and Brass . Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

Application:

Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

Successful examples  :  Taizhou railway station , Direct Center of Baosteel Group shanghai No.5 Steel Co., ltd ., Beijing Olumpic Park National Meeting Center , Shanghai Television Station News Center , Canton Huilai Fire Power plant , Nanjing Olympic Center , Vehicle Testing Laboratory of China North Vehicle Research Institute .

Advantage:


1. Inverter Arc Stud welder which could weld shear stud from dia 10mm-25mm

2. Digital display of charging voltage and indication function of operating  modes provide easy and visual operation .

3. Good welding quality and wide applicability .Available to various kinds of materials , such as carbon or stainless steel, aluminum and copper .Also suits to shear connector .

4. Now has been widely used in shipbuilding, boiler, transformer, automobile, building and bridge engineering, etc

Technical Specification

Power Supply:Standard:3-phase   380V   50-60Hz

The input power under different temporary rate:265/10%  220/20%  165/40%(KVA/%)

Max work current:2500A

Welding time:0-3ms

Stud Range:10mm-25mm

Protection:Ceramic Ferrule Protection

Duty Cycle:3/Φ25  6/Φ22  10/Φ19(Welding quantity per minute/stud diameter)

Weight:120KG

Dimension:790mm×415mm×850mm
