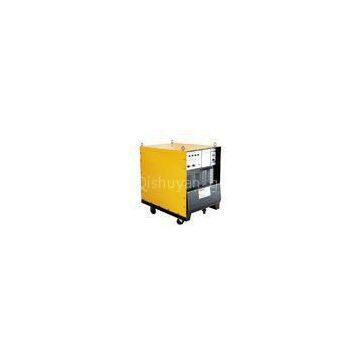

Drawn Arc Stud Welder 50Hz / 415V With Shear Connector for M13 - M16 Studs

Drawn Arc Stud Welder 50Hz / 415V With Shear Connector for M13 - M16 Studs

Drawn Arc Stud welder which could  weld dia 3-16mm studs  . It suits to different material studs , such as copper plated , AL , Stainless Steel , Brass , also with shear connector for M13 M16.


RSN-1450 is a same series produce with RSN-800 that use German advanced electrical control technology. It has wide performance that can be used all stud welding fields and it is gas protected. It can be used for boating manufacturing, boiler, automobile, bridge and transformer.


It sells well in General Industry , also with decoration industry

Functions: By welding Arc welding studs with material for copper plated, stainless steel and AL and Brass . Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

Application:

Being in use of Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

Successful examples  :  Taizhou railway station , Direct Center of Baosteel Group shanghai No.5 Steel Co., ltd ., Beijing Olumpic Park National Meeting Center , Shanghai Television Station News Center , Canton Huilai Fire Power plant , Nanjing Olympic Center , Vehicle Testing Laboratory of China North Vehicle Research Institute .

Advantage:

1. Digital display of charging voltage and indication function of operating  modes provide easy and visual operation .

2. Good welding quality and wide applicability .Available to various kinds of materials , such as carbon or stainless steel, aluminum and copper .Also suits to shear connector .

3. Now has been widely used in shipbuilding, boiler, transformer, automobile, building and bridge engineering, etc

4. Simiar functions of Germany Nelson stud welder

Technical Parameter

Power Supply:Standard 3-phase  220V/345V/380V/415V/440V 50/60Hz

The input power under different temporary rate:112/5%  33/60%  25/100%(KVA/%)

Max work current:1450A

Welding time:50-1000mm

Stud Range:Φ3-Φ16 (mm)

Protection:Ceramic Ferrule &  gas protection

Duty Cycle:49/Φ5   3/Φ16 (Welding quantity per minute/stud diameter)

Weight:200KG

Case Dim:810mm×540mm×765mm
