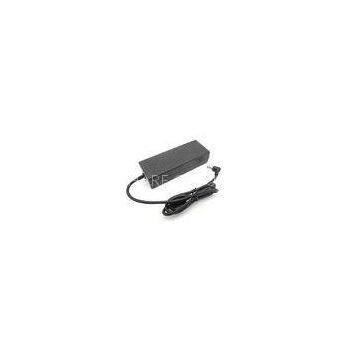

DC19V Universal Laptop Power Adapter EMC LVD Approved , Sony
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- IRR01001 irrigation set
- Tactical Grade Inertial Measurement Unit STIM300 IMU Factory Calibrated
- ALPS Alpine Resistance Position Sensor RDC1022A05 10K Long Life Linear Type
- High-sensitive Mass Flow Controller SZCB-01-A2-B1-C3 Chinese steam turbine by Yoyik
- Intelligent Transmitter HL-6-300-15 for Bangladesh power system by Yoyik
- Wearable INDICATOR DIAL OILTEMP BWR-04JJ(TH) for Indonesia Thermal Power by Yoyik
Product Details
Brand Name: | RAYTOP | Place of Origin: | China | Model Number: | ETL1200400A |
Product Description
Certification:CE, RoHS, FCC
DC19V Universal Laptop Power Adapter EMC LVD Approved , Sony
Quick Detail:
120W laptop adapter, single output 19V,6.32A, with green LED indicator for LED, LCD display screen.
Specs:
Input: AC100-240V, 1.8A max.
Output: DC19V, 6.32A
Power Cord:
AC Cable:3x0.75mm2 length: 1.2M
DC Cable: 16AWG, Copper, length: 1.2M
AC Plug: EU, UK, US, SAA, CCC
Features:
-Worldwide input voltage 100~240Vac;
-High efficiency, up to 85%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-8 different output connectors for top brands laptops.
-MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Contents: 1Adapter + 1AC Cable+1DC Cable +8 Connectors
Description:
This is an single output laptop AC adapter come with 8 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc.
Applications:
External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
1.8A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC19V |
Output Voltage |
DC19V |
|
Rated Output Current |
6.32A |
|
Rated Power |
120W |
|
Ripple and Noise |
120mV p-p |
|
Standby Power Consumption |
0.5W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
10mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
405 ℃, full load, 4 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
