Certification:CE,ROHS

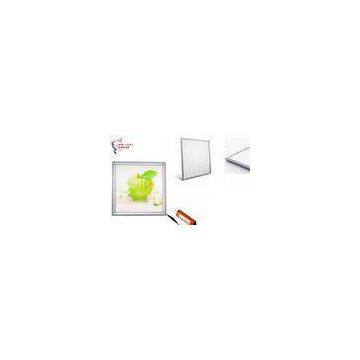

High Efficiency 3D LED Panel For Indoor Area 30cmx30cm
Tip: this kind of print pictures can be oem by factory, install from back side, it is not traditional advertising lamp box, if you need advertising lamp box, please contact us directly.
Quick Detail:
1. Application: Indoor
2. Light body material: Aluminum alloy
3. Light source: Led
4. Light Luminous efficiency: 85Lm/W
5. Thickness: 12mm
6. IP rate: IP40
Description:
1. Light guide plate has 90% light transmittance rate,
2. No dark spot
3. Leading heatsink design, low temperature increase, increase the lifespan
4. Super bright led smd 3014 as light source.
5. Mercury free
6. Lovely price at same quality.
PARAMETER
|
· Item NO.: |
SL3030 W/NW/WW |
|
· Dimension: |
300mm x 300mm x 12mm |
|
· LED type: |
SMD 3014 |
|
· LED Q\'ty: |
80pcs |
|
· Material: |
Aluminum + PMMA |
|
· Beam Way: |
Beam at two sides |
|
· Working temperature: |
-10.C~40.C |
|
· Installation method: |
Embedded. Hanging |
|
· IP rate |
IP40 |
|
· N.W.(±0.1Kg) |
1.2Kg |
PHOTOELECTRICITY PARAMETER
|
· CCT : |
2900-6500K |
|
· Flux.(±10%): |
850lm |
|
· Light Efficiency(±10%): |
85lm / Watt |
|
· Input voltage: |
AC 220V |
|
· Input Power: |
10W |
|
· CRI: |
Ra>80 |
|
· Dimmable: |
Non Dimmable |
|
· Lighting Angle: |
180° |
DIMENSIONAL DRAWING
PRODUCT DETAILS FOR 300X300X12MM LED PANEL LIGHT
APPLICATION
◎ Commercial lighting, environmentally friendly lighting, warehouse , supermarket and home illumination.
◎ IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel and other public places.
◎ Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range
installation instrustions
Why choose us?
every panel light will pass 24 tests (including led chip light output test, voltage test, power supplier test, the frame flatness test, light guide plate test,and so on) before we delivery. we use top range material for led panel light, for example, laser light guide palte from japan, led chip from taiwan, the frame use 6030 pure aluminu, and very stable power supplier. fast lead time (we use less than 10 days manufacture 10,000 pcs led panel light from received payment to delivery). fast response wow pricethanks for your inquiry, we will response you in 8 hours.
Led panel light; Led panel down light; u0.3mx0.3m Led flat panel light
