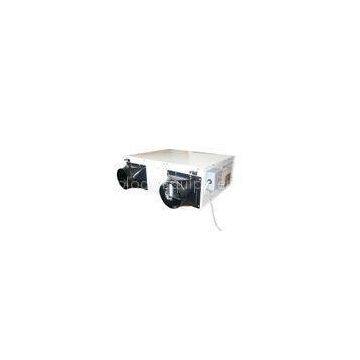

Large Capacity Household HRV Heat Recovery Ventilator with Air purification
Quick Detail:
Model Number: WSD-4DJ
Type: Ventilation Heat recovery ventilator
Installation type: Hang Ceiling type
Nominal air flow: 350-450m3/h
Voltage: 220V/50HZ
Power (W): 25*2W
Enthalpy efficiency: 68%
Temperature efficiency: 78%
Exchanger core: PAPER or ALUMINIUM
Intelligent control: LED display
More functions: Air purification, energy recovery,
Application: House, conference, laboratory, office, machinery
Features:
structure:350-450M3/H energy recover ventilator
Maximum Working Pressure: 50-110 Pa
Certification: CCC , CE
Noise: 38 (dB)
Motor: External rotor motor
Impeller: Backward-curved centrifugal impeller
Protection: Automatic reste thermal overload protection
Filter: nylon filter
Feature: ERV bidierectional flow
Casing: Metal casing with thermal insulating layer
Air deflector: Patent air deflector device
Dimension(L*W*H): 690*750*235mm
Weight: 35kgs
Description:
It is used for house, office, lab, hotel, hospital and all kind of show business.
His series\' air flow is from 200-500m3/h.
It is placed in proof, don\'t occupy the space of the room, and not effect the effection of decorate of the room.
The machine is so neatly that can be placed inversy.
The machine is adjusted with high and low, you can control it timing depend on your need.
The specification and performance from.
Specifications:
| WSD-2DJ | WSD-3DJ | WSD-4DJ | WSD-5DJ | |
| Airflow | 200CMH | 300CMH | 400CMH | 500CMH |
| Residual pressure | 30-70pa | 40-85pa | 50-110pa | 60-110pa |
| Temperature efficiency | 78% | 78% | 78% | 78% |
| Noise | 34dB(A) | 36dB(A) | 38dB(A) | 38dB(A) |
| Power | 16*2 W | 20*2 W | 25*2 W | 50*2W |
| Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Weight | 20KG | 25KG | 35KG | 45KG |
|
Size model |
W | W1 | L | L1 | L2 | L3 | H | A | B | C | D | E |
| wsd-2DJ | 690 | 590 | 510 | 540 | 560 | 750 | 235 | 130 | 430 | 140 | 148 | 18 |
| wsd-3DJ | 690 | 590 | 510 | 540 | 560 | 750 | 235 | 130 | 430 | 140 | 148 | 18 |
| wsd-4DJ | 690 | 590 | 510 | 540 | 560 | 750 | 235 | 130 | 430 | 140 | 148 | 18 |
| wsd-5DJ | 690 | 590 | 750 | 780 | 800 | 990 | 270 | 150 | 410 | 160 | 148 | 18 |
