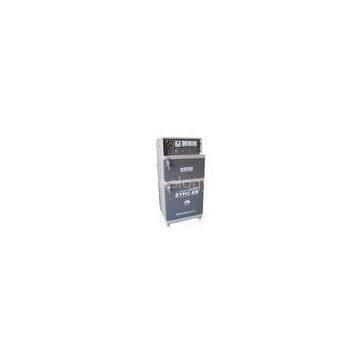

60kg Electrode Drying Oven with AC 220V / 50V 4.8KW ZYHC-60
Quick Detail:
1. Type: Floor Type Electrode Dryer / Oven
2. Voltage: AC220/50V
3. Rated Capacity : 60kg
4. Dimensions: 730x640x1360MM
5. Color:white
6. Power: 4.8
7. Temperature range: 500°C
8. Usage: dry welding electrode
9. Inner material: Stainless steel
10. Weight: 150kg
11. Certificate: CE, CCC, ISO
Description:
1. Heating process is automatic, easy to operate;
2. Temperature and time figures display
3. Drawer is made of stainless steel, corrosion-resistance, to extend the use of time;
4. Independent rear cover is installed, the insulation effect, and to solve difficult maintenance issues;
5. Far-infrared radiation heating is adopted, energy conservation;
6. Long holding time, 20 hours; Can continue to work
7. With drying, police function after the thermal insulation
8, Widely used in electrical, machinery, metallurgy, chemical, boiler industry.
9, ISO9001: 2000 certification. OEM service is available.
Applications:
Widely used in electricity power ,mechanism,metallurgy ,chemical,boiler and other construction projects.
Specifications:
|
Order NO. |
Model NO. |
Supply voltage ( V/HZ ) |
Power(KW) |
Capability(KG) |
MAX,temperature(°C) |
Welding rod length(MM) |
Control mode |
L X W X H(MM) |
Weight (KG) |
|
KY55 6008 |
ZYHC-20 |
AC220/50 |
2.0 |
20 |
500 |
450 |
Time scale |
730x465x1120 |
100 |
|
KY55 6009 |
ZYHC-30 |
AC220/50 |
3.2 |
30 |
730x465x1300 |
130 |
|||
|
KY55 6010 |
ZYHC-40 |
AC220/50 |
3.8 |
40 |
730x465x1330 |
135 |
|||
|
KY55 6011 |
ZYHC-60 |
AC220/50 |
4.8 |
60 |
730x640x1360 |
150 |
|||
|
KY55 6012 |
ZYHC-100 |
AC220/50 |
5.4 |
100 |
1100x750x1250 |
225 |
|||
|
KY55 6013 |
ZYHC-150 |
AC220/50 |
7.5 |
150 |
1100x750x1350 |
280 |
|||
|
KY55 6014 |
ZYHC-200 |
AC220/50 |
8.5 |
200 |
1180x780x1480 |
330 |
|||
|
KY55 6015 |
ZYHC-300 |
AC220/50 |
9.0 |
300 |
1420x780x1780 |
380 |
|||
|
KY55 6016 |
ZYHC-500 |
AC220/50 |
9.5 |
500 |
1520x790x1850 |
450 |
Floor Type Electrode Dryer / Oven
1. The ovens are made of high-grade heat insulating materials that can maintain a high constant temperature at all time.
2. Incorporates a highly efficient heater quip
