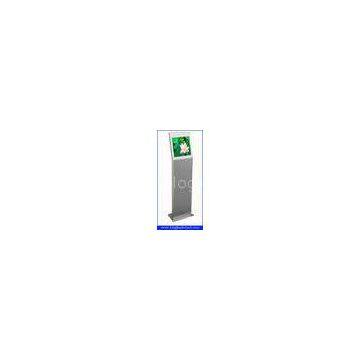

15"~22 Slim Digital Signage for Advertisingwith Android System, WI-FI / 3G Available Multifunction

 Technical Specifications

TFT LED Display

- Resolution: 1280x800(15.4″)

1440x900(17″and 19″)

- Brightness:  300 nits

- Contrast ratio: 600:1

- Response time :8 ms

Touch Screen (Option)

- Vandal-proof SAW touch screen

- Material: Heat tempered glass

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: ≥ 92%

- Surface Hardness:  7 Mohs scale

- Lifetime:50,000,000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g

Enclosure

- Durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys

Mother Board

-Tablet mainboard

-CPUAllwinner A10  1.0 GHZ

-RAM: 512M

-Storage memory: 512M

-WIFI

-3G(option)

Operation System

Android V4.0

Working Voltage

AC 12V.

Ambient Environment

- WorkingTemperature

-20℃~65℃;RelativeHumidity: 30%~90%

- Storage Temperature:

-40℃~80℃;Relative Humidity: 5%~95%

Weight and Dimensions

- Weight: 9 kgs for 15”

- Dimensions: 38.5x31x8.5cm

Interface:

2x USB

1x SD/TF card slot,support up to 32G

 1x HDMI, support up to 1080P

1x RJ45, 10M/100M

1x LVDS

1x 3.5mm Audio output jack
