Certification:CE,RoHS,VDE,UL,CUL,LPCB
Quick Detail:

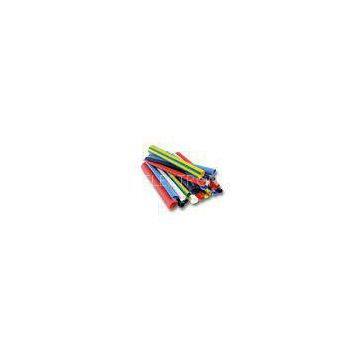

2:1 PVC Heat Shrink Tubing
(M23053/2,CL2)
Low -Cost
Economical
Excellent sunlight and ozone resistance
Ecellent oil,moisture,and fungus resistance
Semi-gloss finish ideal for cosmetic appilications
Outstanding flame and chemical resistance
Easily hot stamped for wire ID
Spooled lengths reduce waste
Competitive price with good and stable quality
Quickly and professionally answer for the inquire
Description:
2:1 PVC Heat Shrink Tubing (M23053/2) is a low-cost, economical heat shrink tubing for military, commercial, and industrial cable assemblies. It offers great electrical insulation and has a low shrink temperature. It also resists many chemicals, oils, sunlight, moisture, and fungus. The tubing is very flexible.
Because of good managing methods, KINGTONE’S price of Solar Cable is not high although our quality is really high.
Applications:
Electrical & general purpose bundling
Uses with PVC Cable
Use with heat sensitive substrates
Wire harnesses and cable assemblies
Applications with flame retardant requirements
Automated cutting machines (spools)
M23053/2 Characteristics:
Shrinkage Ratio: 50% (2:1) @ 105ºC
Longitudinal Shrinkage: 10% (min.)
Operating Temp Range: -35ºC to +105ºC
Dielectric Strength: 1,083 V/mil
UL Rating: 600V @ 105ºC
Volume Resistivity: 21.5 x 1012 ohm-cm
Specific Gravity: 1.33
Tensile Strength: 2,500 psi (176 kg/cm2)
Ultimate Elongation Non-Irradiated: 300% (min.)
Colors: Black, clear, red and yellow
M23053/2 Chemical Properties:
Corrosive Effect: Meets requirements of MIL-I-631
Fungus Resistance: No growth (MIL-I-7444)
Water Absorption: 0 to 1% max 24 hours @ 25ºC
M23053/2 Features:
Economical
Excellent sunlight and ozone resistance
Excellent oil, moisture, and fungus resistance
Semi-gloss finish ideal for cosmetic applications
Outstanding flame and chemical resistance
Easily hot stamped for wire ID
Spooled lengths reduce waste
Other Benefits:
Low Shrink Temperature (100ºC)
30% Stronger than Standard Polyolefin
Low Water Absorption and UV Resistant
Multiple Package Availability
Customization Services for 2:1 PVC Heat Shrink Tubing include:
|
Size (in) |
Expanded I.D. (in) |
Recovered I.D. (in) |
Nom. Rec. Wall Thick. (in) |
Mil-Spec # |
|
3/64 |
0.046 |
0.023 |
0.02 |
M23053/2-201 |
|
1/16 |
0.063 |
0.031 |
0.02 |
M23053/2-202 |
|
3/32 |
0.093 |
0.046 |
0.02 |
M23053/2-203 |
|
1/8 |
0.125 |
0.062 |
0.02 |
M23053/2-204 |
|
3/16 |
0.187 |
0.093 |
0.02 |
M23053/2-205 |
|
1/4 |
0.25 |
0.125 |
0.025 |
M23053/2-206 |
|
5/14 |
0.313 |
0.187 |
0.025 |
|
|
3/8 |
0.375 |
0.187 |
0.025 |
M23053/2-207 |
