Product Details
Brand Name: | lysonled | Place of Origin: | China | Model Number: | P6 DIP Outdoor LED Display Screen |
Product Description
Certification:CE ROHS ISO
DIP236 Outdoor Advertising LED Display P6 , Commercial Full Color LED Screen 1R1G1B
Quick Detail:
1) Stable quality:Opto + Silan chipset;
2) High brightness:>11000 nits;
3) Scan driver:1/4 current;
4) Module size(L*W):192*192mm;
Description:

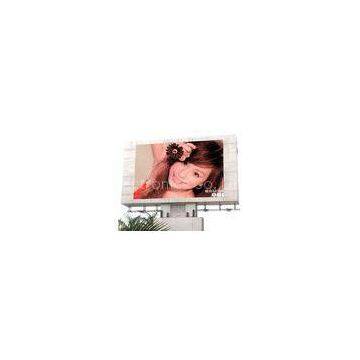

P6 DIP Outdoor Full Color LED Display Screen
6mm pixel pitch,1R1G1B,27778 dots/sqm,P6 DIP Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P6 DIP Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
P6mm P7mm P8mm P10mm DIP Outdoor LED Display Screen:
Module |
Pitch/mm |
P6 |
P7 |
P8 |
P10 |
Module size/mm |
192*192 |
224*112 |
256*128 |
320*160 |
|
Density of pixel/(dots/m2) |
27778 |
20408 |
15625 |
10000 |
|
Pixel composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Led encapsulation |
DIP |
DIP |
DIP |
DIP |
|
Resolution of module |
32*32 |
32*16 |
32*16 |
32*16 |
|
Main |
Optimum viewing distance |
≥5 |
≥6 |
≥7 |
≥8 |
View angle / ° |
V60/H120 |
V60/H120 |
V60/H120 |
V60/H120 |
|
Average power consumption/W/M2 |
650 |
600 |
550 |
500 |
|
Max power consumption/W/M2 |
1300 |
1200 |
1100 |
1000 |
|
Size of cabinet/mm |
768*768 |
896*672 |
768*768 |
1280*960 |
|
Resolution of cabinet |
128*128 |
128*96 |
96*96 |
128*96 |
|
Frame frequency / Hz/S |
≥60 |
≥60 |
≥60 |
≥60 |
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
≥600 |
|
Luminance of white balance |
≥11000nits |
≥10000nits |
≥8000nits |
