Help Center50W Coaxial Attenuator 3dB,6db,10db,15db,20db,30db,40db,50db 3Ghz 4Ghz 6Ghz 8Ghz 50ohm
Related Products
-
N Type 2W Attenuator 3Ghz 6Ghz 8GHz 12Ghz 18GHz 50ohm 1-30dBUS$ 9 - 9MOQ: 10 Pieces -
2W BNC Attenuator 3dB,6db, 10db,15db,20db,30db DC 6GHZ 50ohmUS$ 10 - 10MOQ: 50 Pieces
-
200W RF Termination Dummy Load 18GHz 50ohmUS$ 10 - 10MOQ: 50 Pieces
-
2W SMA Attenuator 3dB,6db, 10db,15db,20db,30db 6GHz 8Ghz 10GHz 12Ghz 18GHz 26.5GHz 50ohmUS$ 6 - 6MOQ: 10 Pieces
-
10W SMA Fixed Attenuator 3Ghz 4Ghz 6Ghz 8Ghz 18Ghz 26.5GHz 3dB 6dB 10dB 20dB 30dBUS$ 18 - 18MOQ: 10 Pieces
For low power Coaxial Attenuator we can do frequency up to 67Ghz
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
5W-30W SMA Attenuator can work up to 26.5GHz
30W-100W SMA/N type attenuator can work up to 18GHz,
For high power 100W-500W DC-18GHZ Attenuators, many customers turn to us for a replacement of Weinschel.
The advantages are Reliable quality
Competitive price
Very short delivery (For example, 0-60db chips are designed and fabricated in-house, most models are stocked with raw materials)
Quick response from our inside sales team
Factory service&high quality&fast delivery

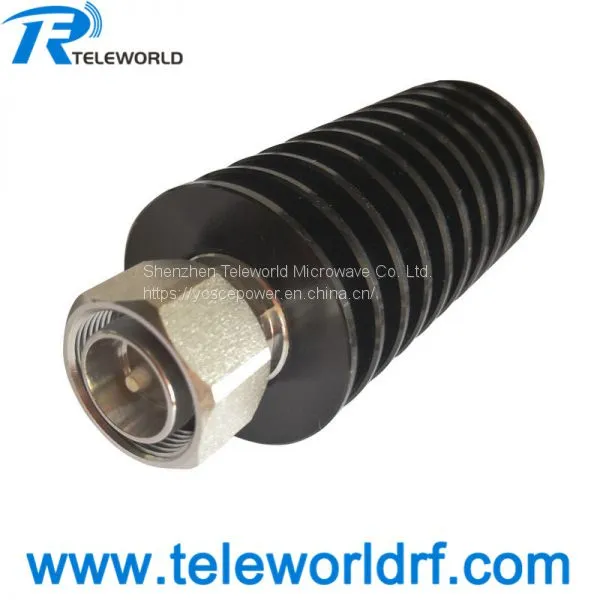

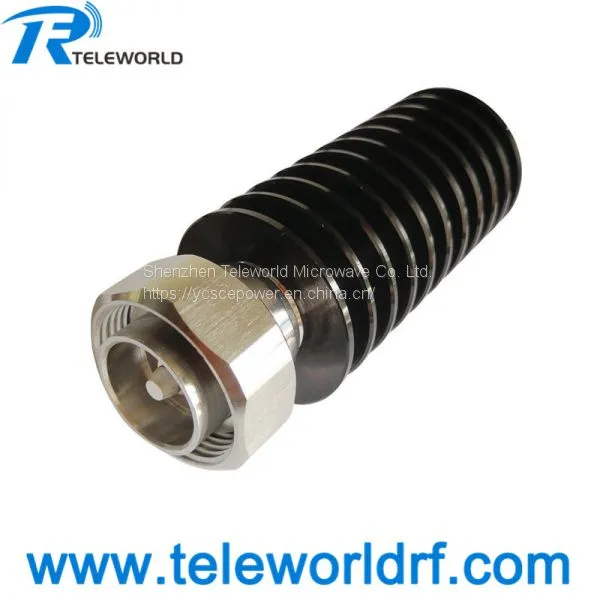

50W fixed attenuator 1dB,3dB.6dB.10dB.15dB.20dB.30dB,40dB,50dB DC-4GHz 50ohm
Applications: DC-4G,4.3/10 DIN to N 50W RF fixed attenuator 50ohms
1.50W 4.3/10 DIN to N coaxial fixed attenuator is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
| DC-3/4/6G, 50W coaxial Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 4.0GHz |
| VSWR | ≤1.20 | POWER RATING | 50W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Attenuation |
1,3,6,10,15,20,30,40,50dB available, and 1-10dB.±0.5dB,15-30dB±1dB,40dB-50dB±1.5dB, |
||
