Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 200W N /DIN/4.3-10 High Voltage DC Block 3000V 3GHz 50Ohm
200W N /DIN/4.3-10 High Voltage DC Block 3000V 3GHz 50Ohm
US$ 70 - 70
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
2W Sma dc Block dc Blocking 50V 6ghzUS$ 10 - 10MOQ: 10 Pieces -
Adjustable Attenuator 5W N Step Attenuator 90db Male to FemaleUS$ 85 - 85MOQ: 10 Pieces
-
10W SMA Fixed Attenuator 3Ghz 4Ghz 6Ghz 8Ghz 18Ghz 26.5GHz 3dB 6dB 10dB 20dB 30dBUS$ 18 - 18MOQ: 10 Pieces
-
50W Coaxial Attenuator 3dB,6db,10db,15db,20db,30db,40db,50db 3Ghz 4Ghz 6Ghz 8Ghz 50ohmNegotiableMOQ: 2 Pieces
-
N Type 2W Attenuator 3Ghz 6Ghz 8GHz 12Ghz 18GHz 50ohm 1-30dBUS$ 9 - 9MOQ: 10 Pieces

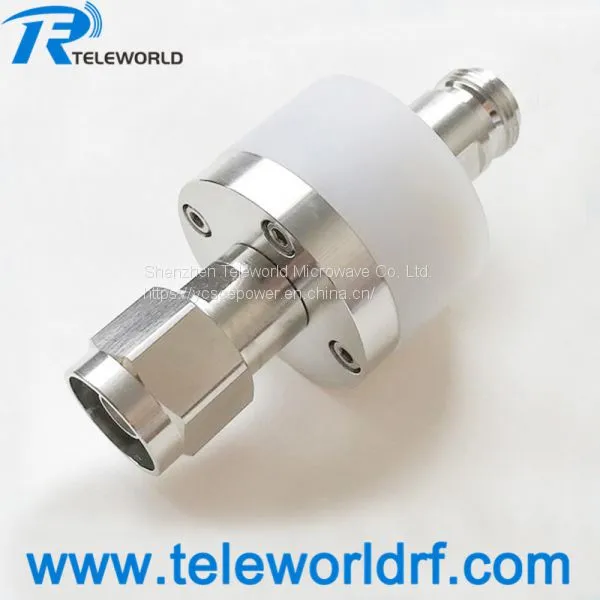

200W High Voltage dc block with 4.3/10 DIN connector 50ohm 3GHz
1.DC block prevent the flow of direct current or of signals with low transmission frequencies while allowing RF transmission to proceed smoothly at the same time.
2.Applications include the blocking of current surges that can occur in subway tunnels and rail systems, at base-station/cell-sites during lightening storms, to route DC to tower mounted amplifiers (TMA’s) .
Specifications Model 4.3/10-JK-BLOCK(3000V)
Interface Type 4.3/10-JK
Frequency range DC~3000MHz
Rated characteristic impedance 50Ω
DC withstand voltage 3000V
Rated power 200W
Insertion loss 50~3000MHz ≤0.20dB
Voltage standing wave ratio
50~2500MHz ≤1.10
2500~3000MHz ≤1.15
Temperature range -50~+85°C
