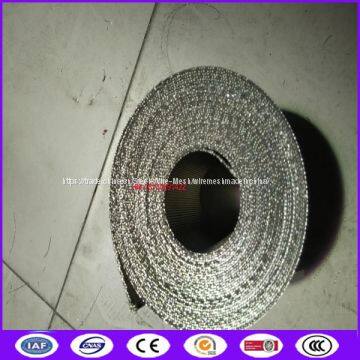

Stainless Steel Continouse Filter Belt

In addition to extruder screen filter, we also manufacturewire cloth filters belts for continuous screen changersfrom high tensile stainless steel wire, which are suitable for screening foreign particles out of molten plastic.

Stainless steel continuous filter belt specification:
Material: Stainless Steel 302,304,316,316L.
Woven in reverse dutch weave pattern.
Size: 48×10 mesh, 72×15 mesh, 132×14 mesh, 132×17 mesh, 152×24 mesh, 152×30 mesh, 260×40 mesh, 250×40 mesh, 400×120 mesh.
Width 100mm to 1200mm.
Length 10m to 30m.
Other size available

Features:
Automatic belt filter mesh has the resistance to acid, soda, corrosion, high temperature etc;
The filter band is produced by reverse dutch weave, so it has greater strength to support for greater loads in filtration;
With reverse dutch weave, the ribbon filter belt has precision mesh size to effect good filtration in extrusion;

Application:
This type of filter screen are widely used for plastic extrusion and melt filtration in plastic industry for PP, PS, PVC, PET, PE, ABS, PMMA in belt style continuous screen changers.

Brief Descriptopn

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Reverse Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.

Standard Technial parameters

(1) Material : AISI 304 304L 316 316L stainless steel wire

(2) Weave Type : Reversed Dutch Weave

(3) Mesh Size : 72/15-260/40 Mesh

(4) Width : 97mm  127mm 260mm 320mm 400mm etc

(5)Length : 10m ,20m,16.5m,30m,38.5m etc

Features

• High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.

• Rubbed Edges after slitting to help with tracking for Auto-Screen changers.

• Plasma and laser cut parts to help prevent edges wire fraying.

• 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.

Application

Widely used for plastic chemical machines and chemical fiber machines for filtering in plastic industry for PP,PS,PVC,PET,PE,ABS,PMMA in ribbon stype continuous screen changers for plastic extrusion melt fitration

Packing

our standard export seaworthy packing is as follows: inside with"paper tube" wraped with"plastic film"as well as "waterproof paper" to prevent the moist while on sea,final loaded in wooden case to reduce the pressure while loading
