SS 304 Automatic reverse dutch mesh belt filter for stretch film machine
- 1000 Roll / Rolls per Month
- Tianjin ,China
- T/T L/C Credit Card PayPal Cash Escrow Other
- 20 days
- 350*40 mesh stainless steel Reverse dutch woven conveyor belt for filtering plastic in screen changer
- 152x30 mesh Plastic drawing wire machine used 97mm,127mm,150mm width filter belt
- 72x15 mesh 97mm,127mm,150mm Holland wire cloth filter belt for plastic drawing machine
- 97mm 127mm,150mm Holland wire cloth filter belt for plastic drawing machine
- stainless steel 304 97mm 127mm reversed dutch wire mesh belt for plastic wire drawing machine
- 160mesh SS304 97mm 127mm 130mm 150mm belt filter mesh for screen changer
Product Details
Brand Name: | Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh | Place of Origin: | China | Model Number: | Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh |
Material: | Stainless Steel Wire | Type: | Weave Wire Mesh | Application: | Woven Wire Mesh |
Technique: | Woven | Wire Diameter: | 0.1-0.7mm | Weave Style: | Other, Reverse Dutch |
Product Description
SS 304 Automatic reverse dutch mesh belt filter for stretch film machine
According to local differences and usage are also known as: reverse dutch belt netting (also called Dutch/holland cloth)
Material: stainless steel iron wire is common ,like ss202 ,304,316 ,sometimes copper and nickel wire available ,also weave according to customer's request for special material
Weaving Type : Reverse Dutch
Specifications: General length of 10 meters/20meters long,
width :40mm-110mm,common width :97mm,120mm,127mm,130mm,150mm,etc
mesh :40 mesh -350 mesh, common mesh : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.also people call 100mesh,120mesh,130mesh,160mesh,180mesh,200mesh,etc
Uses: Applicable to the Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, casting film machine, coating machine filter. Domestic equipment: Lanfei 90 presses, Changzhou Hengli presses, Yantai presses, etc., are widely used in such as plastic woven bags, plastic film, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and transportation industry. Plastic extruder with automatic belt filter, plastic melt filter, press belt filter. Products work fine, often with the filter equipment exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
Basic specifications
Mesh | Wire Dai.(mm) | Thickness(mm) | Width(cm) |
45x15 | 0.45x0.6 | 1.75 | 9.7-28 |
48X10 | 0.50X0.50 | 3.6kg/sq.m | 9.7-28 |
72x15 | 0.45x0.55 | 1.7 | 9.7-28 |
90X17 | 0.23X0.55 | 2.48kg/sq.m | 9.7-28 |
110X17 | 0.23X0.55 | 2.6kg/sq.m | 9.7-28 |
110X21 | 0.23X0.35 | 2.0kg/sq.m | 9.7-28 |
120x16 | 0.35x0.45 | 1.36 | 9.7-28 |
132x17 | 0. 3x0.45 | 1.3 | 9.7-28 |
152x24 | 0.3x0.40 | 1.2 | 9.7-28 |
160x18 | 0.28x0.45 | 1.27 | 8-85 |
200x40 | 0.15x0.27 | 0.7 | 8-130 |
260x40 | 0.15 x0.27 | 0.65 | 8-130 |
300x40 | 0.15 x0.27 | 0.65 | 8-130 |
360x40 | 0.13 x0.27 | 0.6 | 8-130 |
Special specification we can produce according to customers' requirements. |
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
Automatic reverse dutch mesh belt filter for stretch film machine Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.

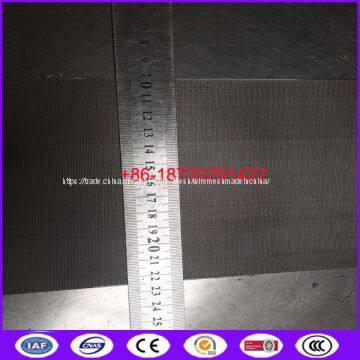

Edge of Automatic reverse dutch mesh belt filter for stretch film machine
Applications of Automatic reverse dutch mesh belt filter for stretch film machine

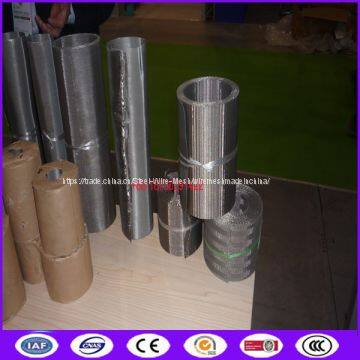

Packing of Automatic reverse dutch mesh belt filter for stretch film machine
Waterproof paper on each roll + carton / wooden case
Shipping of Automatic reverse dutch mesh belt filter for stretch film machine
By sea or By Air - Express , No problem for us .
Do you accept Paypal , west Union ?
Yes It is ok for us ,No problem .
Contact us : Ms Alisa Zhou
Mobile : +86 18730291422 (wechat welcome you )
E-mail :alisawiremesh@hotmail.com
Wechat:perfectme88
Whats app : same as above Mobile number .
