Hot!Continuous automatic belt filter screen
Brief introduct
Continuous automatic belt filter screen also called reverse dutch wire mesh, Made of high quality high strength stainless steel wire excellent production technology, advanced equipment, has excellent filtering performance.
The weft wires are of greater diameter than the warp wires, and consequently the warp mesh count is greater than the weft mesh count. This cloth is extremely strong, is easily cleaned and has a high flow rate.
Application
1.Widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and transportation and other industries
2.Applicable to the Austrian lenzing equipment and Germany, Japan and other countries of the wire drawing machine, stretch film machine, coating machine filters.Domestic equipment: LanFei molding machine 90, changzhou hengli molding machine, yantai production molding machine, etc.Often exported to southeast Asia, UK, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
Characteristics
1. With smooth surface
2.High hardness
4.High temperature resistance, good low temperature resistance
5.Corrosion resistance
6.Filtering performance is stable
7.Can reach 20 horsepower
8.Has excellent filtering performance
9.Through the machine very flexibility
10.Good filtering precision, load high strength,etc
Specification
Material: 302,304,316stainless steel
Weave type:Plain dutch,twill duch
Width:Max:50cm
Common length:10m/roll
Mesh/inch | Wire Dia.(mm) | Width(mm) | Length/Roll(m) |
72/15 | 0.45/0.55 | 97---400 | 10/20 |
120/15 | 0.35/0.45 | 97---400 | 10/20 |
132/17 | 0.32/0.45 | 97---400 | 10/20 |
150/17 | 0.3/0.45 | 97---400 | 10/20 |
152/24 | 0.27/04 | 97---400 | 10/20 |
170/17 | 0.27/0.45 | 97-400 | 10/20 |
180/18 | 0.27/0.45 | 97-400 | 10/20 |
200/40 | 0.17/0.27 | 97---400 | 10/20 |
260/40 | 0.15/0.25 | 97---400 | 10/20 |

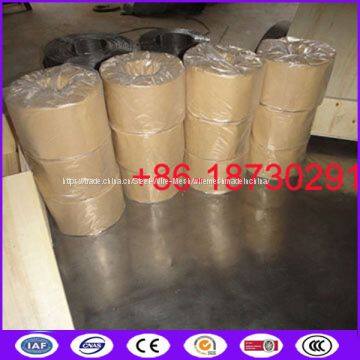

Packing , waterproof paper inside , plywood case outside ( carton box + woven bag )
