Certification:CE,SGS,ISO

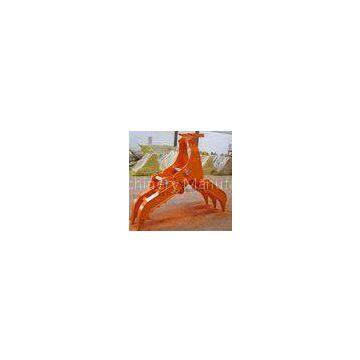

Excavator Wood Grapple For 6-65 Tons Of Machine Tonnage Komatsu
Introduction:
1. Excavator wood grapple is also divided into mechanical and hydraulic grapple two kinds , mechanical gripper fork itself has not hydraulic cylinders, are mechanical structures , so called mechanical gripper .
2. Excavator wood grapple have two parts, left and right sides , respectively, two to five claws or even more, by working on both sides of the opening and closing to grab material , shaped like a \" fork \", as named \" Fork excavator gripper . \"
3. Hydraulic excavator with a hydraulic cylinder gripper, itself driven by function is also divided into rotary and non- rotary , rotary gripper imported excavator hydraulic motor rotary device that can achieve 360-degree barrier arbitrary rotation .
Features:
1.The wide opening width enables outstanding performance in handling the iron bar and light weight enables operation efficiency.
2. Unlimited clockwise and anti-clockwise 360 degree rotatable.
3. Special designed swing bearing for durability and big cylinder for more power
4. Check valve is embedded for better safety in case of shock, value enclosed for
better safety from damage.
5. Wear resistant special solid steel is used and no extra reinforcement is required.
6. Flexible choices dependent on job environment
7. Rotating speed controllable.
8.Versatile applications including handling of stone and wood, scrap handling, landscaping works, sorting and cleaning up.
9. Minimized hydraulic trouble which may occur during rotating works.
Parameter:
|
Machine Tonnage |
Description |
Max. Opening range(mm) |
Weight (kg) |
Material |
|
3-5T |
Non-rotary Grapple Rotary hydraulic Grapple |
1250 |
380 420 |
HARDOX+Q345B HARDOX+Q345B |
|
6-10T |
Non-rotary Grapple Rotary hydraulic Grapple |
1450 |
650 710 |
HARDOX+Q345B HARDOX+Q345B |
|
11-16T |
Non-rotary Grapple Rotary hydraulic Grapple |
1700 |
800 870 |
HARDOX+Q345B HARDOX+Q345B |
|
17-20T |
Non-rotary Grapple Rotary hydraulic Grapple |
1900 |
970 1050 |
HARDOX+Q345B HARDOX+Q345B |
|
21-24T |
Non-rotary Grapple Rotary hydraulic Grapple |
2050 |
1070 1150 |
HARDOX+Q345B HARDOX+Q345B |
|
25-30T |
Non-rotary Grapple Rotary hydraulic Grapple |
2200 |
1200 1300 |
HARDOX+Q345B HARDOX+Q345B |
|
31-35T |
Non-rotary Grapple Rotary hydraulic Grapple |
2300 |
1400 1250 |
HARDOX+Q345B HARDOX+Q345B |
|
36-40T |
Non-rotary Grapple Rotary hydraulic Grapple |
2400 |
1650 1790 |
HARDOX+Q345B HARDOX+Q345B |
|
41-45T |
Non-rotary Grapple Rotary hydraulic Grapple |
2500 |
1940 2100 |
HARDOX+Q345B HARDOX+Q345B |
|
65T |
Non-rotary Grapple |
