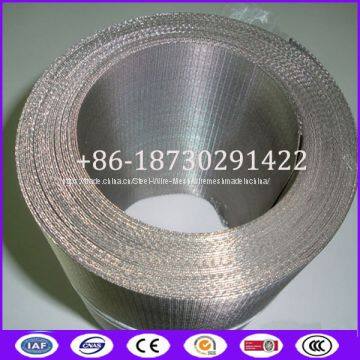

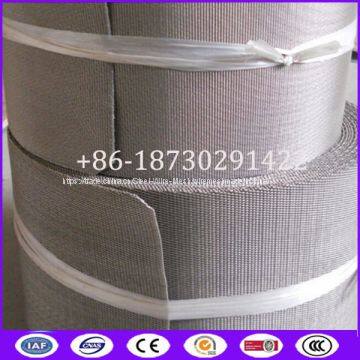

130x30 mesh Automatic Screen changer screen belt made in China

FOB Price

USD $10 - $50 / Roll

1 Roll(Min.Order)

Supply Ability 1000 Roll / Rolls per Month
Port Tianjin ,China
Payment TermsT/T L/C Credit Card PayPal Cash Escrow Other
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh	Place of Origin	China
Model Number	Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh	Material	Stainless Steel Wire
Type	Weave Wire Mesh	Application	Woven Wire Mesh
Technique	Woven	Wire Diameter	0.1-0.7mm
Weave Style	Other, Reverse Dutch

Product Description

130x30 mesh Automatic Screen changer screen belt made in China

NO.1:Mesh belt : 132x17 mesh, 152x24 mesh, 260x40 mesh, 72x15mesh.150x17 mesh.

132x17mesh: 0.3x0.45mm,4.4kg/sqm.

152x24mesh: 0.3x0.4mm. 3.5kg/sqm.

260x40mesh: 0.15x0.27mm.2.1kg/sqm.

72x15mesh: 0.45x0.55mm. 5kg/sqm.

Width: 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm.

Length: 10m , 20m / roll.

Material: Stainless steel 304.

Woven style: RDW woven. Reversed dutch woven .

Used on the automatic screen changer, for filtering.

NO.2:WE produce reversed dutch woven filter cloth ( RDW FILTER CLOTH ) for 1x30m / roll.

RDW Filter cloth:

130x30mesh, 0.2x0.4mm. 1x30m. 80kg/ roll. SS316L.

175x45mesh, 0.15x0.3mm, 1x30m. 58kg / roll. SS316L.

290x70mesh, 0.09x0.2mm, 1x30m. 39kg / roll. SS316L.

Custom designs are also available

Basic specifications

Mesh	Wire Dai.(mm)	Thickness(mm)	Width(cm)
45x15	0.45x0.6	1.75	9.7-28
48X10	0.50X0.50	3.6kg/sq.m	9.7-28
72x15	0.45x0.55	1.7	9.7-28
90X17	0.23X0.55	2.48kg/sq.m	9.7-28
110X17	0.23X0.55	2.6kg/sq.m	9.7-28
110X21	0.23X0.35	2.0kg/sq.m	9.7-28
120x16	0.35x0.45	1.36	9.7-28
132x17	0. 3x0.45	1.3	9.7-28
152x24	0.3x0.40	1.2	9.7-28
160x18	0.28x0.45	1.27	8-85
200x40	0.15x0.27	0.7	8-130
260x40	0.15 x0.27	0.65	8-130
300x40	0.15 x0.27	0.65	8-130
360x40	0.13 x0.27	0.6	8-130
Special specification we can produce according to customers' requirements.

A : Do you have stock or not ?

Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .

B: Do you accept small order -1 roll ?

Yes, surely , 1 roll is no problem for us .

C : Do you offer free sample for our testing ?

Yes , we surely offer free sample for your quality confirmation .

Automatic Screen changer screen belt Features:

With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.

Continuous automatic filter belt
Mesh/inch	Wire Dia.(mm)	Width(mm)	Length/Roll(m)
72/15	0.45/0.55	97---400	10/20
120/15	0.35/0.45	97---400	10/20
132/17	0.32/0.45	97---400	10/20
150/17	0.3/0.45	97---400	10/20
152/24	0.27/0.4	97---400	10/20
170/17	0.27/0.45	97---400	10/20
180/18	0.27/0.45	97---400	10/20
200/40	0.17/0.27	97---400	10/20
260/40	0.15/0.25	97---400	10/20

Other sizes are avaliable according to clients'request.

Edge of Automatic Screen changer screen belt:

Applications of Automatic Screen changer screen belt :

High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.

Packing of Automatic Screen changer screen belt :

Waterproof paper on each roll + carton / wooden case

Shipping of Automatic Screen changer screen belt :

By sea or By Air - Express , No problem for us .

Do you accept Paypal , west Union ?

Yes It is ok for us ,No problem .

Contact us : Ms Alisa Zhou

Mobile : +86 18730291422

E-mail :alisawiremesh@hotmail.com

Wechat:perfectme88

Whats app : same as above Mobile number .
