SPY Tracking Device Mini Quad Frequency Car GPS Tracker System With GSM SIM 9 - 70V Voltage for Car

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

G-T005

Contact Supplier Request Quote Chat Now

Shenzhen Guanghua Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name GH

Place of Origin China

Model Number G-T005

Delivery Time:WITHIN 3 DAYS AFTER PAYMENT
Certification:FCC ROHS

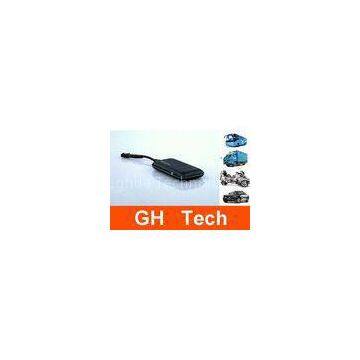

SPY tracking device Mini Quad Frequency Car GPS Tracker System With GSM SIM 9 - 70V Voltage for car truck bus motorcycle

Brief introductions

This is a mini GPS tracker with quad frequency,9-70V DC,SOS which can be used on cars,trucks,motorcycles,taxis.bus and some other vehicles.

Specifications

Network	GSM: 850/900/1800/1900MHz
GPRS	Class 12, TCP/IP
Voltage	9-70V DC
Current	≈22mA(12vDC) ≈12mA(24vDC)
GPS fixed time	Cold start 30sec(open sky) Warm start 29sec(open sky) Hot start 5sec (open sky)
GPS fixed precision	10m (2D RM)
Temperature	-20℃ ~ +70℃
Humidity	5% ~ 95% RH
Dimension	90.0(L)x45.0(W) x13.5(H)mm
Weight	80g

3. Installation comands

Prepare SIM Card: Please use a GSM SIM card. Before insert the SIM card, please make sure to turn off the device. Please make sure the GPRS can be used, if not, please connect Service Provider. Please make sure the Caller ID can be used. Then insert the SIM card. Installation

Please pay attention to the following matters:

Concealed installation for avoid the thieves damage. Avoid install together with the RF source, such as reversing radar, alarm and other vehicle communication equipment. Can use ribbon or wide sponge strength double-faced adhesive stick to fix. Equipment with GSM antenna and GPS antenna, installation shall ensure that face up (skyward), and above no metal barrier shield, suggest installation position:

Front windshield decorative below the covert,

Front panel (skin for non-metal material) around the shadow

Rear window below decorative

3.3 Relay connection comands

Oil pump cut-off relay connection method:Coil ends connection were white line (85) and the yellow line (86), white line (85) joint car positive (+ 12 v), the yellow line (86) joint device relay control line.

The vehicles on the tubing string attached to oil pump, cut the wire of oil pump positive, the wire of oil pump positive joint the normally closed end of the relay (green line 87 a), the other end joint the relay’s other end (green line 30).

Note: this product with standard for 12V relay. Fit for installation on 12V car battery vehicles.

If the battery of the vehicle is 24Vs battery, need to be choose 24V relay.

3.4 Device connection diagram

LED scintillation state meaning interpretation

LED	Scintillation state	Meaning
Red Power LED	Shine 0.1 sec, dim 2 sec	Working
Shine 1 sec, dim 2 sec	Low power
Always dim	Power off or fault
Blue GPS LED	Shine 0.1 sec, dim 2 sec	GPS Fixed
Shine 1 sec, dim 2 sec	GPS not Fixed
Always dim	Power off or fault
Yellow GSM LED	Shine 0.1 sec, dim 2 sec	GSM ready
Shine 1 sec, dim 2 sec	GSM not ready
Always dim	Power off or fa
